Levelling feet

SOLIDFULLYTHREADED

SOLIDFULLYTHREADED

PLASTICFULLYTHREADED

PLASTICFULLYTHREADED

XHJSE

XHJSE

SEISMIC

SEISMIC

XHJCFE

XHJCFE

WEIGHING

WEIGHING

XHSW

XHSW

XHTW

XHTW

XHJW

XHJW

XHW

XHW

XHGTW

XHGTW

M

HX

HX-FIX

HX-FIX

HXT

HXT

M-FIX

M-FIX

Showing 1-24 of 123 item(s)

Machine foot HJ150-M16 x 100, AISI 304, 2 fixations

Machine foot HJ150-M16 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HJ150-M16 x 100, AISI 304, 2 fixations

Footplate diameter:150.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:110.00 mm (4.33")|Min. adjustment:62.00 mm (2.44")|Mounting holes:2.00|Net weight:1,779.00 g (3.92 lbs)|Nom. load:30,800.00 N (6,924.12 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot HJ150-M20 x 100, AISI 304, 2 fixations

Machine foot HJ150-M20 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HJ150-M20 x 100, AISI 304, 2 fixations

Footplate diameter:150.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:65.00 mm (2.56")|Mounting holes:2.00|Net weight:1,854.00 g (4.09 lbs)|Nom. load:48,200.00 N (10,835.79 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot M50-UNC 3/8 x 4, AISI 304, Black NBR

Machine foot M50-UNC 3/8 x 4, AISI 304, Black NBR 2

New

M

Machine foot M50-UNC 3/8 x 4, AISI 304, Black NBR

Footplate diameter:50.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:114.00 mm (4.49")|Min. adjustment:47.00 mm (1.85")|Mounting holes:0|Net weight:149.00 g (0.33 lbs)|Nom. load:4,000.00 N (899.24 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:UNC 3/8|Thread standard:UNC

View

Machine foot M75-UNC 3/8 x 4, AISI 304, Black NBR

Machine foot M75-UNC 3/8 x 4, AISI 304, Black NBR 2

New

M

Machine foot M75-UNC 3/8 x 4, AISI 304, Black NBR

Footplate diameter:75.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:114.00 mm (4.49")|Min. adjustment:47.00 mm (1.85")|Mounting holes:0|Net weight:250.00 g (0.55 lbs)|Nom. load:8,000.00 N (1,798.47 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:UNC 3/8|Thread standard:UNC

View

Machine foot M-FIX77-UNC 3/8 x 4, AISI 304, Black NBR, 2 fixations

Machine foot M-FIX77-UNC 3/8 x 4, AISI 304, Black NBR, 2 fixations 2

New

M-FIX

Machine foot M-FIX77-UNC 3/8 x 4, AISI 304, Black NBR, 2 fixations

Footplate diameter:77.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:114.00 mm (4.49")|Min. adjustment:47.00 mm (1.85")|Mounting holes:2.00|Net weight:306.00 g (0.67 lbs)|Nom. load:8,000.00 N (1,798.47 lbs)|Nom. pull:1,550.00 N (348.45 lbs)|Rubber Type:Black NBR|Thread size:UNC 3/8|Thread standard:UNC

View

Machine foot M-FIX76-UNC 3/8 x 4, AISI 304, Black NBR, 1 fixation

Machine foot M-FIX76-UNC 3/8 x 4, AISI 304, Black NBR, 1 fixation 2

New

M-FIX

Machine foot M-FIX76-UNC 3/8 x 4, AISI 304, Black NBR, 1 fixation

Footplate diameter:76.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:114.00 mm (4.49")|Min. adjustment:47.00 mm (1.85")|Mounting holes:1.00|Net weight:277.00 g (0.61 lbs)|Nom. load:8,000.00 N (1,798.47 lbs)|Nom. pull:3,500.00 N (786.83 lbs)|Rubber Type:Black NBR|Thread size:UNC 3/8|Thread standard:UNC

View

Machine foot HJ-AS110-M42 x 100, AISI 304, Black NBR, 2 fixations

Machine foot HJ-AS110-M42 x 100, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HJ-AS110-M42 x 100, AISI 304, Black NBR, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:89.00 mm (3.50")|Min. adjustment:86.00 mm (3.39")|Mounting holes:2.00|Net weight:1,836.00 g (4.05 lbs)|Nom. load:30,000.00 N (6,744.27 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:M42|Thread standard:Metric C

View

Machine foot HJ-AS150-M42 x 100, AISI 304, Black NBR, 2 fixations

Machine foot HJ-AS150-M42 x 100, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HJ-AS150-M42 x 100, AISI 304, Black NBR, 2 fixations

Footplate diameter:150.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:89.00 mm (3.50")|Min. adjustment:86.00 mm (3.39")|Mounting holes:2.00|Net weight:2,648.00 g (5.84 lbs)|Nom. load:80,000.00 N (17,984.72 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:M42|Thread standard:Metric C

View

Machine foot HGT90-UNC 1 x 4, AISI 304

Machine foot HGT90-UNC 1 x 4, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HGT90-UNC 1 x 4, AISI 304

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:100.00 mm (3.94")|Min. adjustment:69.00 mm (2.72")|Mounting holes:0|Net weight:964.00 g (2.13 lbs)|Nom. load:77,500.00 N (17,422.69 lbs)|Nom. pull:0|Thread size:UNC 1|Thread standard:UNC

View

Machine foot HGT110-UNC 1 x 4, AISI 304

Machine foot HGT110-UNC 1 x 4, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HGT110-UNC 1 x 4, AISI 304

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:100.00 mm (3.94")|Min. adjustment:69.00 mm (2.72")|Mounting holes:0|Net weight:1,288.00 g (2.84 lbs)|Nom. load:77,500.00 N (17,422.69 lbs)|Nom. pull:0|Thread size:UNC 1|Thread standard:UNC

View

Machine foot KJ90-M12 x 100, AISI 304, 2 fixations

Machine foot KJ90-M12 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M12 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:113.00 mm (4.45")|Min. adjustment:47.00 mm (1.85")|Mounting holes:2.00|Net weight:637.00 g (1.40 lbs)|Nom. load:16,500.00 N (3,709.35 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M12|Thread standard:Metric C

View

Machine foot KJ90-M16 x 100, AISI 304, 2 fixations

Machine foot KJ90-M16 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M16 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:110.00 mm (4.33")|Min. adjustment:50.00 mm (1.97")|Mounting holes:2.00|Net weight:701.00 g (1.55 lbs)|Nom. load:30,800.00 N (6,924.12 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot KJ90-M20 x 100, AISI 304, 2 fixations

Machine foot KJ90-M20 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M20 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:53.00 mm (2.09")|Mounting holes:2.00|Net weight:782.00 g (1.72 lbs)|Nom. load:48,200.00 N (10,835.79 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot KJ90-M24 x 100, AISI 304, 2 fixations

Machine foot KJ90-M24 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M24 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:104.00 mm (4.09")|Min. adjustment:56.00 mm (2.20")|Mounting holes:2.00|Net weight:878.00 g (1.94 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M24|Thread standard:Metric C

View

Machine foot KJ90-M30 x 100, AISI 304, 2 fixations

Machine foot KJ90-M30 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M30 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:99.00 mm (3.90")|Min. adjustment:63.00 mm (2.48")|Mounting holes:2.00|Net weight:1,060.00 g (2.34 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot KJ90-M36 x 100, AISI 304, 2 fixations

Machine foot KJ90-M36 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M36 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:94.00 mm (3.70")|Min. adjustment:70.00 mm (2.76")|Mounting holes:2.00|Net weight:1,288.00 g (2.84 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot KJ90-M42 x 100, AISI 304, 2 fixations

Machine foot KJ90-M42 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ90-M42 x 100, AISI 304, 2 fixations

Footplate diameter:90.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:89.00 mm (3.50")|Min. adjustment:75.00 mm (2.95")|Mounting holes:2.00|Net weight:1,539.00 g (3.39 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M42|Thread standard:Metric C

View

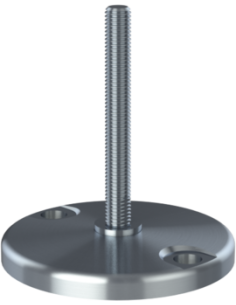

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:113.00 mm (4.45")|Min. adjustment:47.00 mm (1.85")|Mounting holes:2.00|Net weight:943.00 g (2.08 lbs)|Nom. load:16,500.00 N (3,709.35 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M12|Thread standard:Metric C

View

Machine foot KJ110-M16 x 100, AISI 304, 2 fixations

Machine foot KJ110-M16 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M16 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:110.00 mm (4.33")|Min. adjustment:50.00 mm (1.97")|Mounting holes:2.00|Net weight:1,006.00 g (2.22 lbs)|Nom. load:30,800.00 N (6,924.12 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot KJ110-M20 x 100, AISI 304, 2 fixations

Machine foot KJ110-M20 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M20 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:53.00 mm (2.09")|Mounting holes:2.00|Net weight:1,087.00 g (2.40 lbs)|Nom. load:48,200.00 N (10,835.79 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot KJ110-M24 x 100, AISI 304, 2 fixations

Machine foot KJ110-M24 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M24 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:104.00 mm (4.09")|Min. adjustment:56.00 mm (2.20")|Mounting holes:2.00|Net weight:1,185.00 g (2.61 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M24|Thread standard:Metric C

View

Machine foot KJ110-M30 x 100, AISI 304, 2 fixations

Machine foot KJ110-M30 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M30 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:99.00 mm (3.90")|Min. adjustment:63.00 mm (2.48")|Mounting holes:2.00|Net weight:1,366.00 g (3.01 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot KJ110-M36 x 100, AISI 304, 2 fixations

Machine foot KJ110-M36 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M36 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:94.00 mm (3.70")|Min. adjustment:70.00 mm (2.76")|Mounting holes:2.00|Net weight:1,594.00 g (3.51 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot KJ110-M42 x 100, AISI 304, 2 fixations

Machine foot KJ110-M42 x 100, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ110-M42 x 100, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:123.00 mm (4.84")|Material:AISI 304|Max. adjustment:89.00 mm (3.50")|Min. adjustment:75.00 mm (2.95")|Mounting holes:2.00|Net weight:1,845.00 g (4.07 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Thread size:M42|Thread standard:Metric C

View
