New M Machine foot M75-M16 x 230, AISI 304, Black NBR 1002820 Footplate diameter:75.00|Height total:248.00 mm (9.76")|Material:AISI 304|Max. adjustment:234.00 mm (9.21")|Min. adjustment:54.00 mm (2.13")|Mounting holes:0|Net weight:512.00 g (1.13 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M16|Thread standard:Metric C View

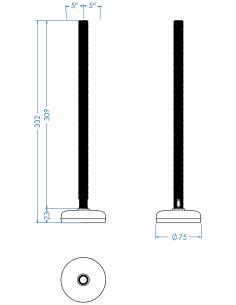

New M Machine foot M75-M16 x 310, AISI 304, Black NBR 1002821 Footplate diameter:75.00|Height total:332.00 mm (13.07")|Material:AISI 304|Max. adjustment:318.00 mm (12.52")|Min. adjustment:54.00 mm (2.13")|Mounting holes:0|Net weight:625.00 g (1.38 lbs)|Nom. load:7,600.00 N (1,708.55 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M16|Thread standard:Metric C View

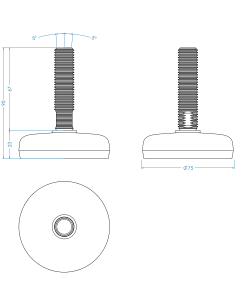

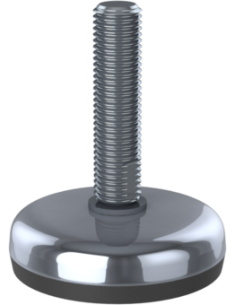

New M Machine foot M75-M16 x 70, AISI 304, Black NBR 1002822 Footplate diameter:75.00|Height total:90.00 mm (3.54")|Material:AISI 304|Max. adjustment:76.00 mm (2.99")|Min. adjustment:54.00 mm (2.13")|Mounting holes:0|Net weight:299.00 g (0.66 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M16|Thread standard:Metric C View
New M Machine foot M75-M20 x 100, AISI 304, Black NBR 1002823 Footplate diameter:75.00|Height total:124.00 mm (4.88")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:421.00 g (0.93 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M20 x 150, AISI 304, Black NBR 1002824 Footplate diameter:75.00|Height total:166.00 mm (6.54")|Material:AISI 304|Max. adjustment:149.00 mm (5.87")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:509.00 g (1.12 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M20 x 180, AISI 304, Black NBR 1002825 Footplate diameter:75.00|Height total:199.00 mm (7.83")|Material:AISI 304|Max. adjustment:182.00 mm (7.17")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:579.00 g (1.28 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M20 x 230, AISI 304, Black NBR 1002826 Footplate diameter:75.00|Height total:248.00 mm (9.76")|Material:AISI 304|Max. adjustment:231.00 mm (9.09")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:684.00 g (1.51 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M20 x 310, AISI 304, Black NBR 1002827 Footplate diameter:75.00|Height total:332.00 mm (13.07")|Material:AISI 304|Max. adjustment:315.00 mm (12.40")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:860.00 g (1.90 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M20 x 70, AISI 304, Black NBR 1002828 Footplate diameter:75.00|Height total:90.00 mm (3.54")|Material:AISI 304|Max. adjustment:73.00 mm (2.87")|Min. adjustment:57.00 mm (2.24")|Mounting holes:0|Net weight:349.00 g (0.77 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M20|Thread standard:Metric C View
New M Machine foot M75-M24 x 100, AISI 304, Black NBR 1002829 Footplate diameter:75.00|Height total:125.00 mm (4.92")|Material:AISI 304|Max. adjustment:105.00 mm (4.13")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:521.00 g (1.15 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M24 x 150, AISI 304, Black NBR 1002830 Footplate diameter:75.00|Height total:167.00 mm (6.57")|Material:AISI 304|Max. adjustment:147.00 mm (5.79")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:648.00 g (1.43 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M24 x 180, AISI 304, Black NBR 1002831 Footplate diameter:75.00|Height total:200.00 mm (7.87")|Material:AISI 304|Max. adjustment:180.00 mm (7.09")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:748.00 g (1.65 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M24 x 230, AISI 304, Black NBR 1002832 Footplate diameter:75.00|Height total:249.00 mm (9.80")|Material:AISI 304|Max. adjustment:229.00 mm (9.02")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:900.00 g (1.98 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M24 x 310, AISI 304, Black NBR 1002833 Footplate diameter:75.00|Height total:333.00 mm (13.11")|Material:AISI 304|Max. adjustment:313.00 mm (12.32")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:1,154.00 g (2.54 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M24 x 70, AISI 304, Black NBR 1002834 Footplate diameter:75.00|Height total:91.00 mm (3.58")|Material:AISI 304|Max. adjustment:71.00 mm (2.80")|Min. adjustment:61.00 mm (2.40")|Mounting holes:0|Net weight:419.00 g (0.92 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View
New M Machine foot M75-M30 x 100, AISI 304, Black NBR 1002835 Footplate diameter:75.00|Height total:125.00 mm (4.92")|Material:AISI 304|Max. adjustment:101.00 mm (3.98")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:695.00 g (1.53 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M30 x 150, AISI 304, Black NBR 1002836 Footplate diameter:75.00|Height total:167.00 mm (6.57")|Material:AISI 304|Max. adjustment:143.00 mm (5.63")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:896.00 g (1.98 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M30 x 180, AISI 304, Black NBR 1002837 Footplate diameter:75.00|Height total:200.00 mm (7.87")|Material:AISI 304|Max. adjustment:176.00 mm (6.93")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:1,054.00 g (2.32 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M30 x 230, AISI 304, Black NBR 1002838 Footplate diameter:75.00|Height total:249.00 mm (9.80")|Material:AISI 304|Max. adjustment:225.00 mm (8.86")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:1,293.00 g (2.85 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M30 x 310, AISI 304, Black NBR 1002839 Footplate diameter:75.00|Height total:333.00 mm (13.11")|Material:AISI 304|Max. adjustment:309.00 mm (12.17")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:1,695.00 g (3.74 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M30 x 70, AISI 304, Black NBR 1002840 Footplate diameter:75.00|Height total:91.00 mm (3.58")|Material:AISI 304|Max. adjustment:67.00 mm (2.64")|Min. adjustment:67.00 mm (2.64")|Mounting holes:0|Net weight:533.00 g (1.18 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View
New M Machine foot M75-M36 x 100, AISI 304, Black NBR 1002841 Footplate diameter:75.00|Height total:125.00 mm (4.92")|Material:AISI 304|Max. adjustment:95.00 mm (3.74")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:922.00 g (2.03 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View
New M Machine foot M75-M36 x 150, AISI 304, Black NBR 1002842 Footplate diameter:75.00|Height total:167.00 mm (6.57")|Material:AISI 304|Max. adjustment:137.00 mm (5.39")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:1,212.00 g (2.67 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View
New M Machine foot M75-M36 x 180, AISI 304, Black NBR 1002843 Footplate diameter:75.00|Height total:200.00 mm (7.87")|Material:AISI 304|Max. adjustment:170.00 mm (6.69")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:1,442.00 g (3.18 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:2,500.00 N (562.02 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View
