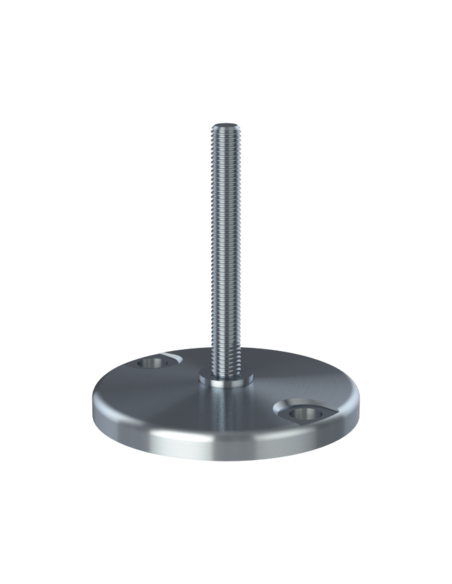

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Machine foot KJ110-M12 x 100, AISI 304, 2 fixations

Net Weight: 943.00 g (2.08 lbs)
Thread Size: M12
Thread standard: Metric C
Height total: 123.00 mm (4.84")
Material: AISI 304
Max. adjustment: 113.00 mm (4.45")
Min. adjustment: 47.00 mm (1.85")
Mounting holes: 2
Footplate diameter: 110
Nom. load: 16,500.00 N (3,709.35 lbs)
Nom. pull: 8,000.00 N (1,798.47 lbs)

Reference 1008245

MPN 1008245

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

Type KJ/KJ AS

The solid KG levelling foot is the optimal choice for heavy machinery and equipment in diverse production environments.The foot can be fastened to the floor by the two fixing holes in the footplate. Bolts, nuts and washers can be supplied.The joined connection between the spindle and the footplate is designed for very high load and high pull.The KJ AS is supplied with anti-vibration and anti-slip NBR rubber (by request EPDM).

Net Weight: 943.00 g (2.08 lbs)
Thread Size: M12
Thread standard: Metric C
Height total: 123.00 mm (4.84")
Material: AISI 304
Max. adjustment: 113.00 mm (4.45")
Min. adjustment: 47.00 mm (1.85")
Mounting holes: 2
Footplate diameter: 110
Nom. load: 16,500.00 N (3,709.35 lbs)
Nom. pull: 8,000.00 N (1,798.47 lbs)

Reference 1008245

MPN 1008245
