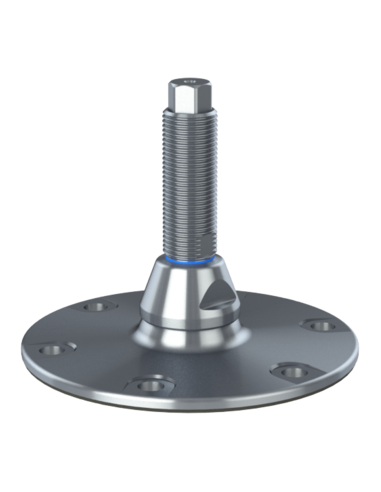

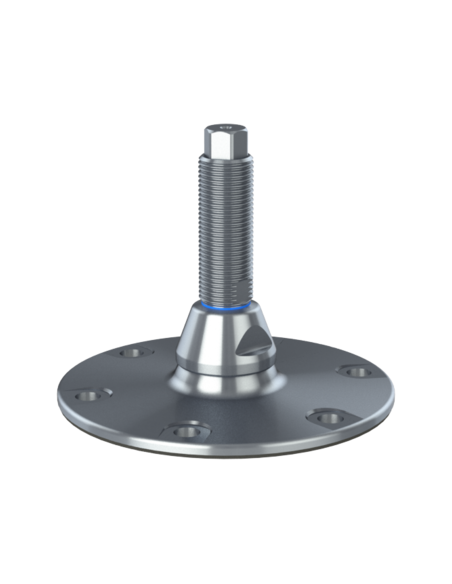

Machine foot HXJEHEX400(l)-HXEH64200

Machine foot HXJEHEX400(l)-HXEH64200

Machine foot HXJEHEX400(l)-HXEH64200

Machine foot HXJEHEX400(l)-HXEH64200

Machine foot HXJEHEX400(l)-HXEH64200

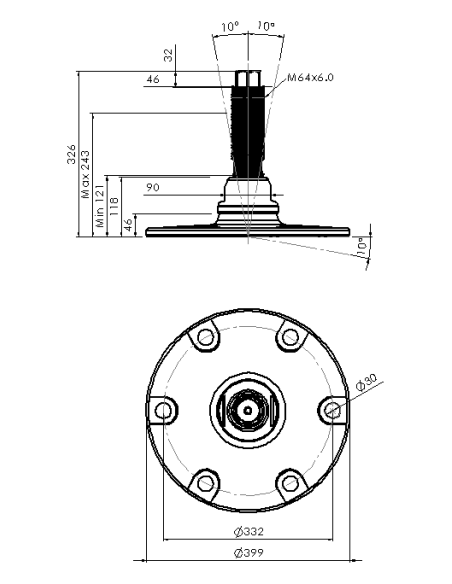

Footplate diameter:399.00|Height total:326.00 mm (12.83")|Mounting holes:6.00|Net weight:28,725.00 g (63.33 lbs)|Thread size:M64|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

Type HXJE + HXJCFE

The design and patent protected seismic HXJE + HXJCFE levelling foot is the optimal choice for machinery, equipment, tanks and vessels located in areas subject to earthquakes. - Simple and fast installation with height-adjustable compact desig- Movable set-up - no concrete molding required- Total seismic stability through bolted fixation and patented locking mechanism- Verified through Finite Element Analysis (FEA) and calculated according to New Zealand seismic standard (NZS 4219)- Seismic anchors chosen and approved by our experienced partner Hilti- Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401

Net Weight: 28,725.00 g (63.33 lbs)
Thread Size: M64
Thread standard: Metric C
Height total: 326.00 mm (12.83")
Mounting holes: 6
Footplate diameter: 399

Reference 2000504

MPN 2000504
