- New
SOLIDFULLYTHREADED

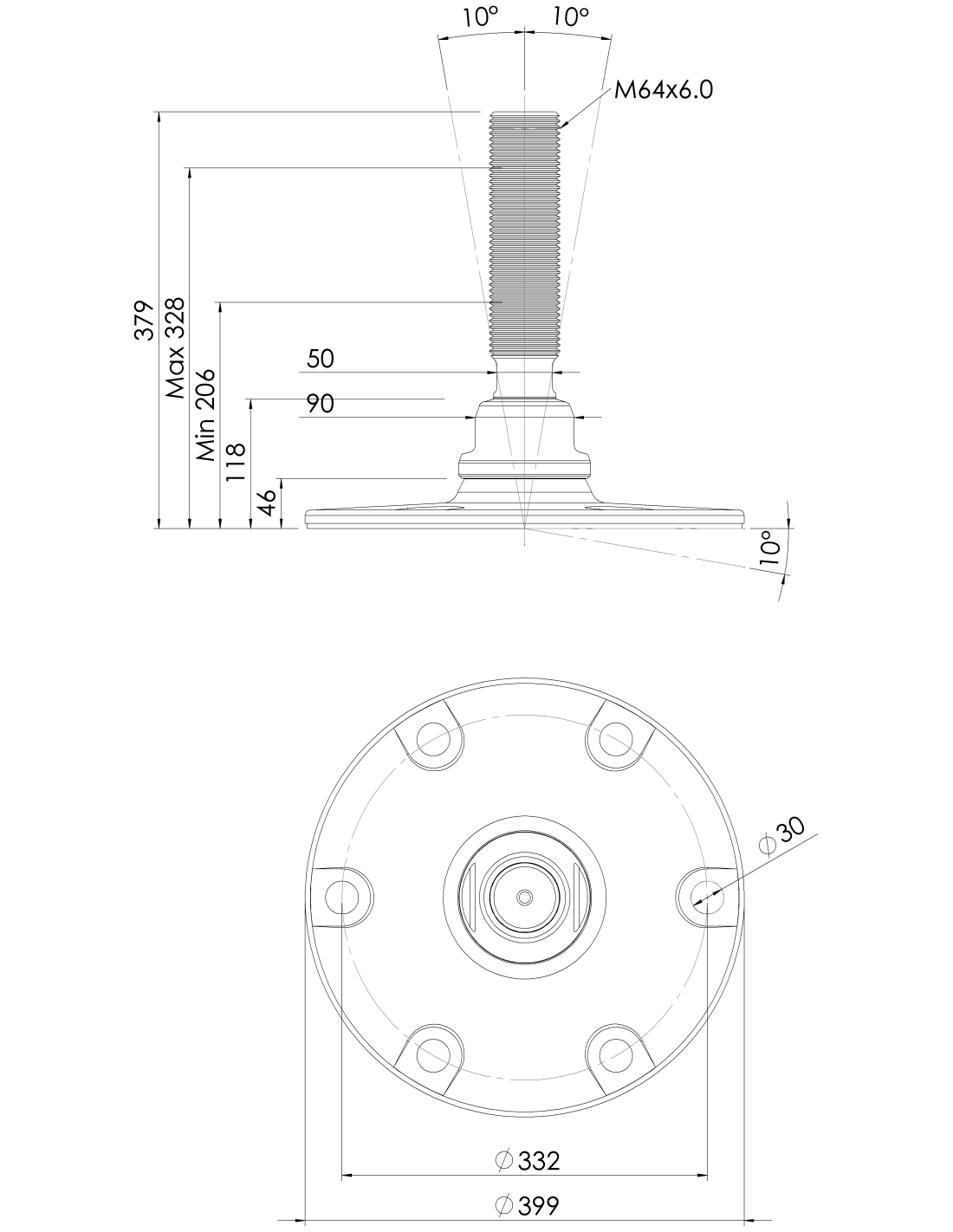

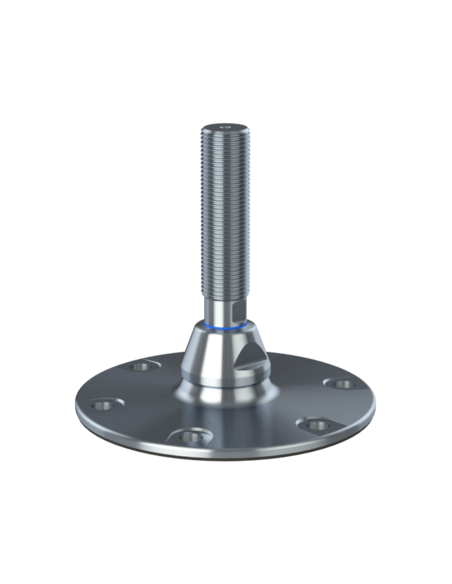

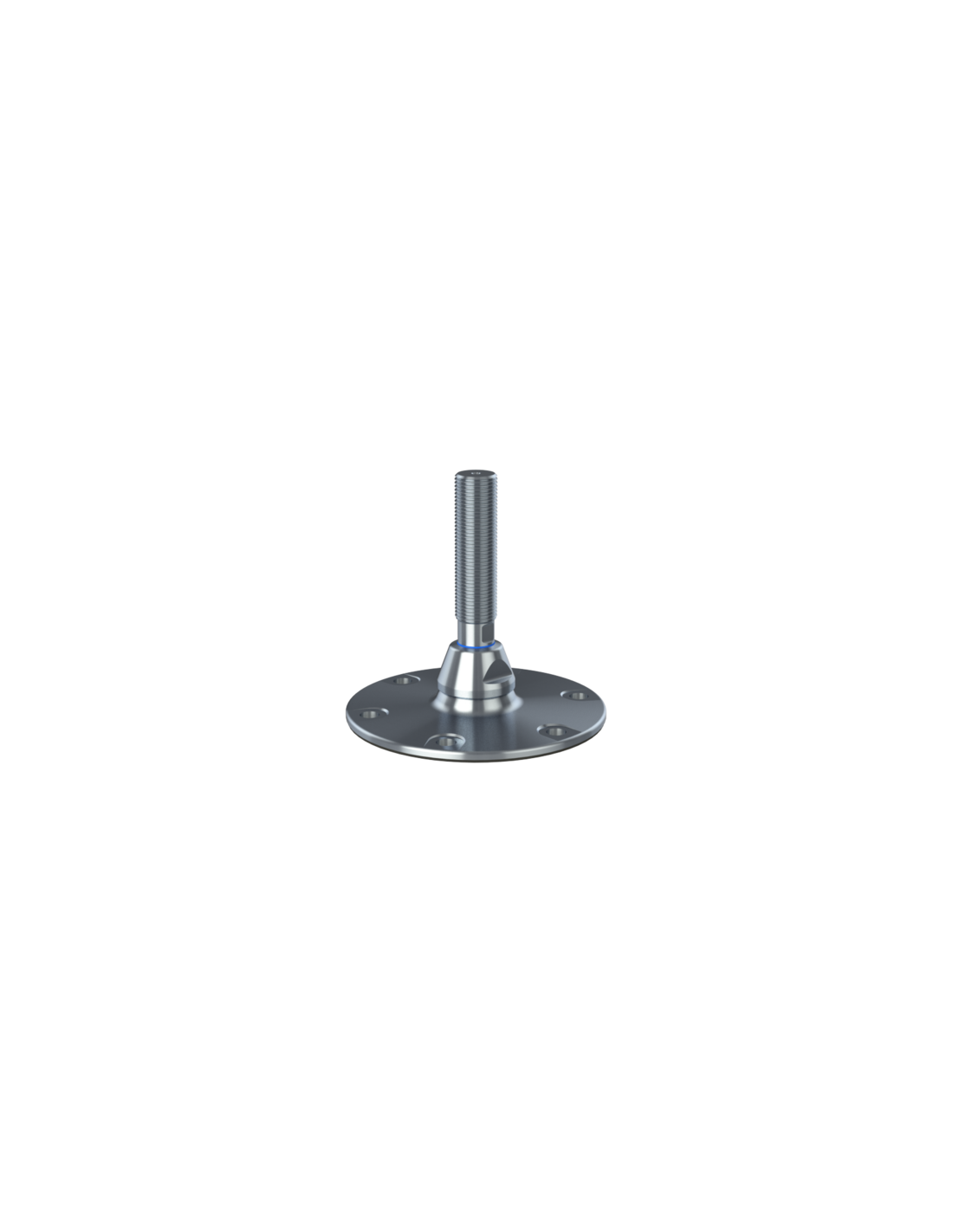

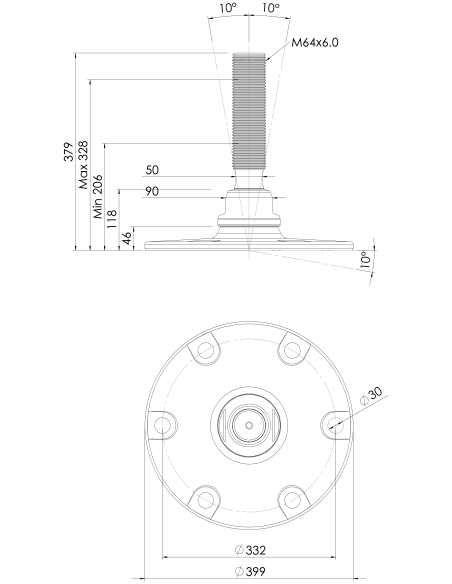

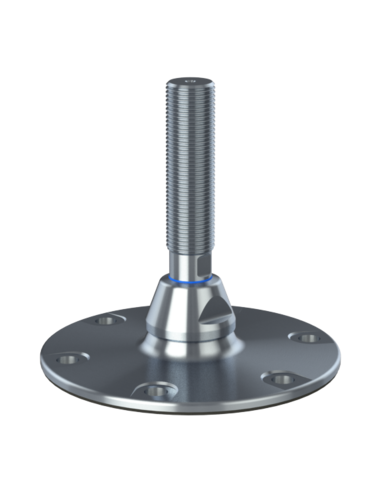

Machine foot HXJE400(l)-HXE64260
Footplate diameter:399.00|Height total:379.00 mm (14.92")|Mounting holes:6.00|Net weight:30,197.00 g (66.57 lbs)|Thread size:M64|Thread standard:Metric C
Technical Guidance
Need help choosing? Discuss your application with us.
Product Specifications
Check dimensions, materials and compatibility before ordering.
Delivery Information
Contact us for delivery options and estimated lead times.
Product Support
Get in touch about documentation, care or product queries.
Type HXJE + HXJCFE
The design and patent protected seismic HXJE + HXJCFE levelling foot is the optimal choice for machinery, equipment, tanks and vessels located in areas subject to earthquakes. - Simple and fast installation with height-adjustable compact desig- Movable set-up - no concrete molding required- Total seismic stability through bolted fixation and patented locking mechanism- Verified through Finite Element Analysis (FEA) and calculated according to New Zealand seismic standard (NZS 4219)- Seismic anchors chosen and approved by our experienced partner Hilti- Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401
- Net Weight
- 30,197.00 g (66.57 lbs)
- Thread Size
- M64
- Thread standard
- Metric C
- Height total
- 379.00 mm (14.92")
- Mounting holes
- 6
- Footplate diameter
- 399
