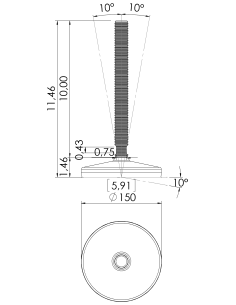

New HXT Machine foot HXT150-UNC 1 x 10, AISI 304, Black NBR 1010825 Footplate diameter:150.00|Height total:291.00 mm (11.46")|Material:AISI 304|Max. adjustment:269.00 mm (10.59")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,818.00 g (4.01 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

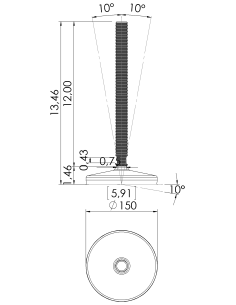

New HXT Machine foot HXT150-UNC 1 x 12, AISI 304, Black NBR 1010826 Footplate diameter:150.00|Height total:342.00 mm (13.46")|Material:AISI 304|Max. adjustment:319.00 mm (12.56")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,994.00 g (4.40 lbs)|Nom. load:50,200.00 N (11,285.41 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

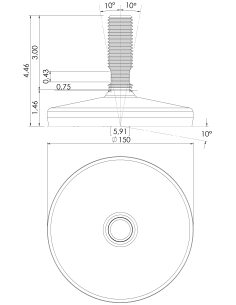

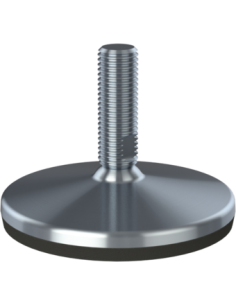

New HXT Machine foot HXT150-UNC 1 x 3, AISI 304, Black NBR 1010827 Footplate diameter:150.00|Height total:113.00 mm (4.45")|Material:AISI 304|Max. adjustment:91.00 mm (3.58")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,201.00 g (2.65 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

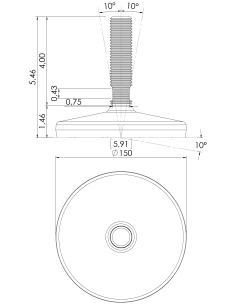

New HXT Machine foot HXT150-UNC 1 x 4, AISI 304, Black NBR 1010828 Footplate diameter:150.00|Height total:139.00 mm (5.47")|Material:AISI 304|Max. adjustment:116.00 mm (4.57")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,289.00 g (2.84 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

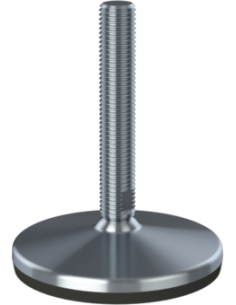

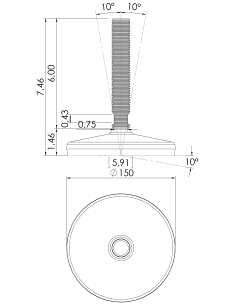

New HXT Machine foot HXT150-UNC 1 x 6, AISI 304, Black NBR 1010829 Footplate diameter:150.00|Height total:190.00 mm (7.48")|Material:AISI 304|Max. adjustment:167.00 mm (6.57")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,465.00 g (3.23 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

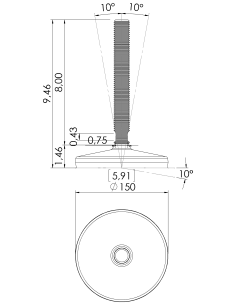

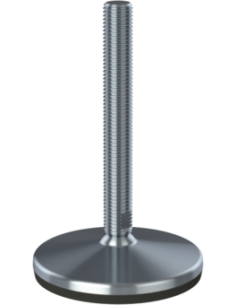

New HXT Machine foot HXT150-UNC 1 x 8, AISI 304, Black NBR 1010830 Footplate diameter:150.00|Height total:240.00 mm (9.45")|Material:AISI 304|Max. adjustment:218.00 mm (8.58")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,641.00 g (3.62 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:UNC 1|Thread standard:UNC View

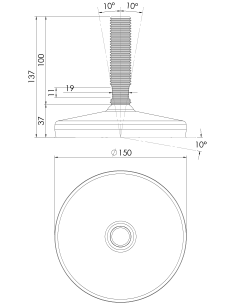

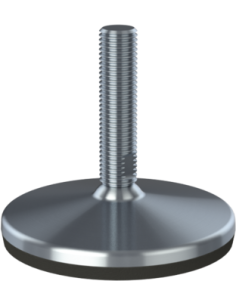

New HXT Machine foot HXT150-M24 x 100, AISI 304, Black NBR 1010831 Footplate diameter:150.00|Height total:137.00 mm (5.39")|Material:AISI 304|Max. adjustment:118.00 mm (4.65")|Min. adjustment:79.00 mm (3.11")|Mounting holes:0|Net weight:1,249.00 g (2.75 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

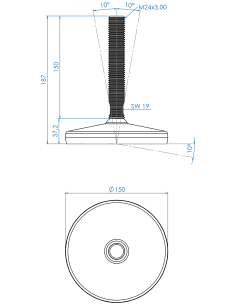

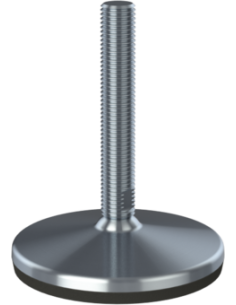

New HXT Machine foot HXT150-M24 x 150, AISI 304, Black NBR 1010832 Footplate diameter:150.00|Height total:187.00 mm (7.36")|Material:AISI 304|Max. adjustment:168.00 mm (6.61")|Min. adjustment:81.00 mm (3.19")|Mounting holes:0|Net weight:1,422.00 g (3.13 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

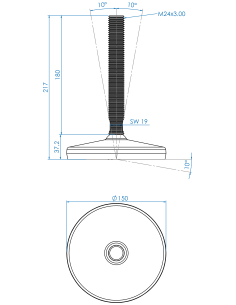

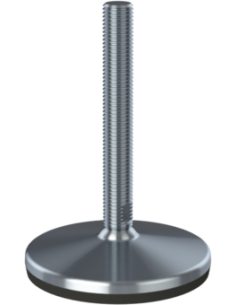

New HXT Machine foot HXT150-M24 x 180, AISI 304, Black NBR 1010833 Footplate diameter:150.00|Height total:217.00 mm (8.54")|Material:AISI 304|Max. adjustment:198.00 mm (7.80")|Min. adjustment:81.00 mm (3.19")|Mounting holes:0|Net weight:1,513.00 g (3.34 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

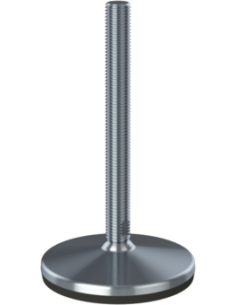

New HXT Machine foot HXT150-M24 x 230, AISI 304, Black NBR 1010834 Footplate diameter:150.00|Height total:267.00 mm (10.51")|Material:AISI 304|Max. adjustment:248.00 mm (9.76")|Min. adjustment:81.00 mm (3.19")|Mounting holes:0|Net weight:1,652.00 g (3.64 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

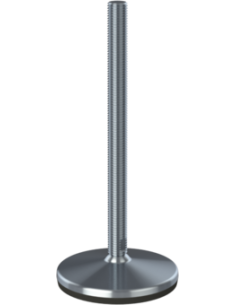

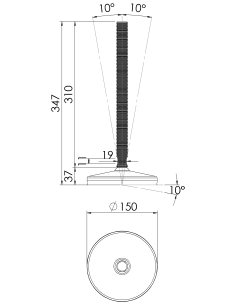

New HXT Machine foot HXT150-M24 x 310, AISI 304, Black NBR 1010835 Footplate diameter:150.00|Height total:347.00 mm (13.66")|Material:AISI 304|Max. adjustment:328.00 mm (12.91")|Min. adjustment:81.00 mm (3.19")|Mounting holes:0|Net weight:1,900.00 g (4.19 lbs)|Nom. load:38,600.00 N (8,677.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

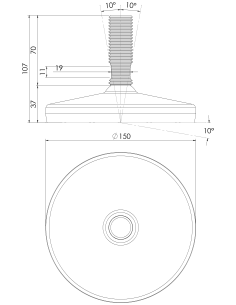

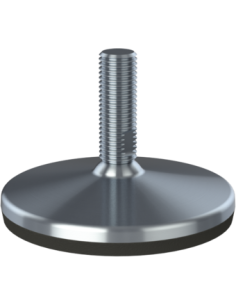

New HXT Machine foot HXT150-M24 x 70, AISI 304, Black NBR 1010836 Footplate diameter:150.00|Height total:107.00 mm (4.21")|Material:AISI 304|Max. adjustment:88.00 mm (3.46")|Min. adjustment:78.00 mm (3.07")|Mounting holes:0|Net weight:1,156.00 g (2.55 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C View

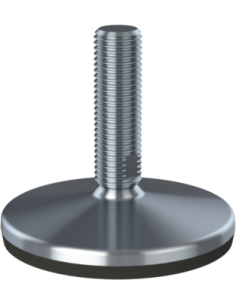

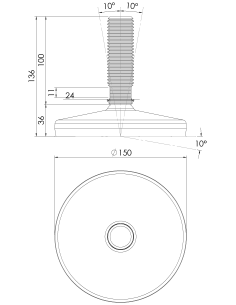

New HXT Machine foot HXT150-M30 x 100, AISI 304, Black NBR 1010837 Footplate diameter:150.00|Height total:136.00 mm (5.35")|Material:AISI 304|Max. adjustment:112.00 mm (4.41")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,421.00 g (3.13 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

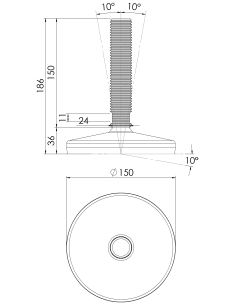

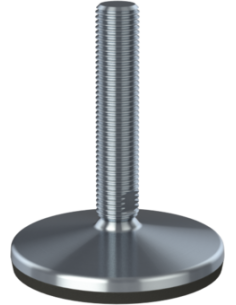

New HXT Machine foot HXT150-M30 x 150, AISI 304, Black NBR 1010838 Footplate diameter:150.00|Height total:186.00 mm (7.32")|Material:AISI 304|Max. adjustment:162.00 mm (6.38")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,666.00 g (3.67 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

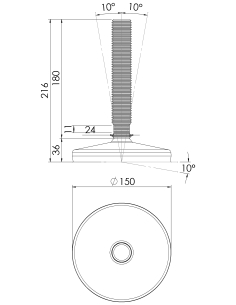

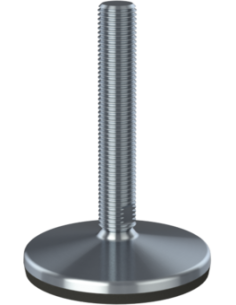

New HXT Machine foot HXT150-M30 x 180, AISI 304, Black NBR 1010839 Footplate diameter:150.00|Height total:216.00 mm (8.50")|Material:AISI 304|Max. adjustment:192.00 mm (7.56")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:1,813.00 g (4.00 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

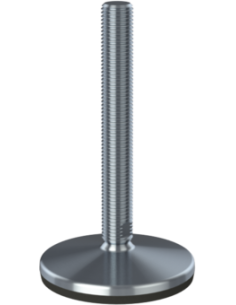

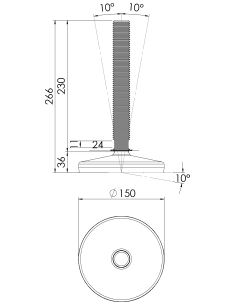

New HXT Machine foot HXT150-M30 x 230, AISI 304, Black NBR 1010840 Footplate diameter:150.00|Height total:266.00 mm (10.47")|Material:AISI 304|Max. adjustment:242.00 mm (9.53")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:2,058.00 g (4.54 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

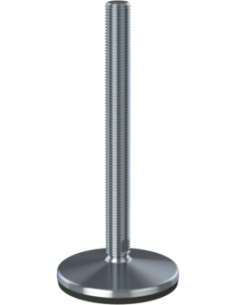

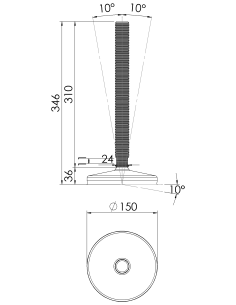

New HXT Machine foot HXT150-M30 x 310, AISI 304, Black NBR 1010841 Footplate diameter:150.00|Height total:346.00 mm (13.62")|Material:AISI 304|Max. adjustment:322.00 mm (12.68")|Min. adjustment:85.00 mm (3.35")|Mounting holes:0|Net weight:2,449.00 g (5.40 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

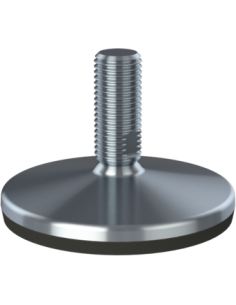

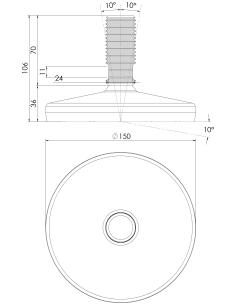

New HXT Machine foot HXT150-M30 x 70, AISI 304, Black NBR 1010842 Footplate diameter:150.00|Height total:106.00 mm (4.17")|Material:AISI 304|Max. adjustment:82.00 mm (3.23")|Min. adjustment:82.00 mm (3.23")|Mounting holes:0|Net weight:1,275.00 g (2.81 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C View

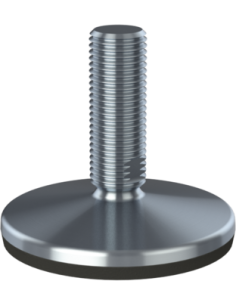

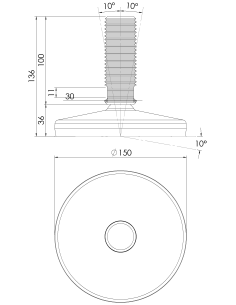

New HXT Machine foot HXT150-M36 x 100, AISI 304, Black NBR 1010843 Footplate diameter:150.00|Height total:136.00 mm (5.35")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:90.00 mm (3.54")|Mounting holes:0|Net weight:1,642.00 g (3.62 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View

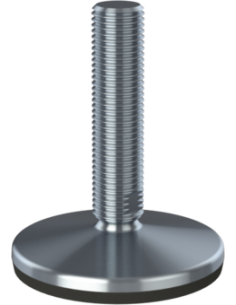

New HXT Machine foot HXT150-M36 x 150, AISI 304, Black NBR 1010844 Footplate diameter:150.00|Height total:186.00 mm (7.32")|Material:AISI 304|Max. adjustment:157.00 mm (6.18")|Min. adjustment:90.00 mm (3.54")|Mounting holes:0|Net weight:1,996.00 g (4.40 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View

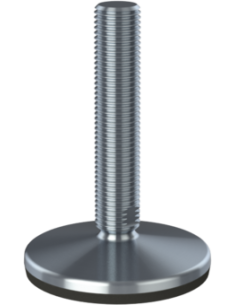

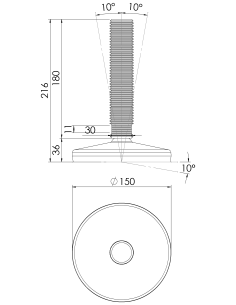

New HXT Machine foot HXT150-M36 x 180, AISI 304, Black NBR 1010845 Footplate diameter:150.00|Height total:216.00 mm (8.50")|Material:AISI 304|Max. adjustment:187.00 mm (7.36")|Min. adjustment:90.00 mm (3.54")|Mounting holes:0|Net weight:2,209.00 g (4.87 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View

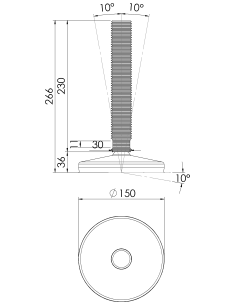

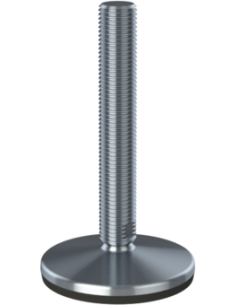

New HXT Machine foot HXT150-M36 x 230, AISI 304, Black NBR 1010846 Footplate diameter:150.00|Height total:266.00 mm (10.47")|Material:AISI 304|Max. adjustment:237.00 mm (9.33")|Min. adjustment:90.00 mm (3.54")|Mounting holes:0|Net weight:2,564.00 g (5.65 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View

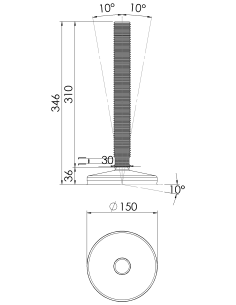

New HXT Machine foot HXT150-M36 x 310, AISI 304, Black NBR 1010847 Footplate diameter:150.00|Height total:346.00 mm (13.62")|Material:AISI 304|Max. adjustment:317.00 mm (12.48")|Min. adjustment:90.00 mm (3.54")|Mounting holes:0|Net weight:3,132.00 g (6.90 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C View

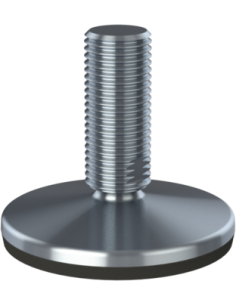

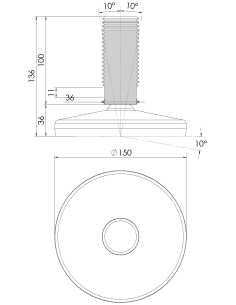

New HXT Machine foot HXT150-M42 x 100, AISI 304, Black NBR 1010848 Footplate diameter:150.00|Height total:136.00 mm (5.35")|Material:AISI 304|Max. adjustment:102.00 mm (4.02")|Min. adjustment:95.00 mm (3.74")|Mounting holes:0|Net weight:1,903.00 g (4.20 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:0|Rubber Type:Black NBR|Thread size:M42|Thread standard:Metric C View
