Machine foot HPA-FIX125-M16 x 180, AISI 304, 2 fixations

Machine foot HPA-FIX125-M16 x 180, AISI 304, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIX125-M16 x 180, AISI 304, 2 fixations

Footplate diameter:125.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:214.00 mm (8.43")|Min. adjustment:79.00 mm (3.11")|Mounting holes:2.00|Net weight:503.00 g (1.11 lbs)|Nom. load:28,000.00 N (6,294.65 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot HPA-FIX125-M20 x 180, AISI 304, 2 fixations

Machine foot HPA-FIX125-M20 x 180, AISI 304, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIX125-M20 x 180, AISI 304, 2 fixations

Footplate diameter:125.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:211.00 mm (8.31")|Min. adjustment:82.00 mm (3.23")|Mounting holes:2.00|Net weight:642.00 g (1.42 lbs)|Nom. load:35,000.00 N (7,868.31 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot HPA-FIX125-M24 x 180, AISI 304, 2 fixations

Machine foot HPA-FIX125-M24 x 180, AISI 304, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIX125-M24 x 180, AISI 304, 2 fixations

Footplate diameter:125.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:208.00 mm (8.19")|Min. adjustment:85.00 mm (3.35")|Mounting holes:2.00|Net weight:809.00 g (1.78 lbs)|Nom. load:35,000.00 N (7,868.31 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:M24|Thread standard:Metric C

View

Machine foot HPA-FIXAS125-M30 x 180, AISI 304, Black EPDM, 2 fixations

Machine foot HPA-FIXAS125-M30 x 180, AISI 304, Black EPDM, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIXAS125-M30 x 180, AISI 304, Black EPDM, 2 fixations

Footplate diameter:125.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:204.00 mm (8.03")|Min. adjustment:88.00 mm (3.46")|Mounting holes:2.00|Net weight:1,123.00 g (2.48 lbs)|Nom. load:35,000.00 N (7,868.31 lbs)|Nom. pull:300.00 N (67.44 lbs)|Rubber Type:Black EPDM|Thread size:M30|Thread standard:Metric C

View

Machine foot HPA-FIXAS125-M36 x 180, AISI 304, Black EPDM, 2 fixations

Machine foot HPA-FIXAS125-M36 x 180, AISI 304, Black EPDM, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIXAS125-M36 x 180, AISI 304, Black EPDM, 2 fixations

Footplate diameter:125.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:198.00 mm (7.80")|Min. adjustment:94.00 mm (3.70")|Mounting holes:2.00|Net weight:1,518.00 g (3.35 lbs)|Nom. load:35,000.00 N (7,868.31 lbs)|Nom. pull:300.00 N (67.44 lbs)|Rubber Type:Black EPDM|Thread size:M36|Thread standard:Metric C

View

Machine foot HPA80-UNC 1 1/4 x 8, AISI 304

Machine foot HPA80-UNC 1 1/4 x 8, AISI 304 2

New

PLASTICFULLYTHREADED

Machine foot HPA80-UNC 1 1/4 x 8, AISI 304

Footplate diameter:80.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:200.00 mm (7.87")|Min. adjustment:71.00 mm (2.80")|Mounting holes:0|Net weight:1,147.00 g (2.53 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:UNC 1 1/4|Thread standard:UNC

View

Machine foot HPA-FIX81-UNC 1 1/4 x 8, AISI 304, 2 fixations

Machine foot HPA-FIX81-UNC 1 1/4 x 8, AISI 304, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIX81-UNC 1 1/4 x 8, AISI 304, 2 fixations

Footplate diameter:81.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:200.00 mm (7.87")|Min. adjustment:71.00 mm (2.80")|Mounting holes:2.00|Net weight:1,148.00 g (2.53 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:UNC 1 1/4|Thread standard:UNC

View

Machine foot HPA-FIXAS81-UNC 1 1/4 x 8, AISI 304, Black EPDM, 2 fixations

Machine foot HPA-FIXAS81-UNC 1 1/4 x 8, AISI 304, Black EPDM, 2 fixations 2

New

PLASTICFULLYTHREADED

Machine foot HPA-FIXAS81-UNC 1 1/4 x 8, AISI 304, Black EPDM, 2 fixations

Footplate diameter:81.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:201.00 mm (7.91")|Min. adjustment:72.00 mm (2.83")|Mounting holes:2.00|Net weight:1,160.00 g (2.56 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:300.00 N (67.44 lbs)|Rubber Type:Black EPDM|Thread size:UNC 1 1/4|Thread standard:UNC

View

Machine foot XHJSE150(s)-XHJSE30150-RHOXS3055

Machine foot XHJSE150(s)-XHJSE30150-RHOXS3055 2

New

XHJSE

Machine foot XHJSE150(s)-XHJSE30150-RHOXS3055

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:3.00|Net weight:4,818.00 g (10.62 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot XHJSE200(s)-XHJSE30150-RHOXS3055

Machine foot XHJSE200(s)-XHJSE30150-RHOXS3055 2

New

XHJSE

Machine foot XHJSE200(s)-XHJSE30150-RHOXS3055

Footplate diameter:199.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,518.00 g (14.37 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot XHJSE250(s)-XHJSE30150-RHOXS3055

Machine foot XHJSE250(s)-XHJSE30150-RHOXS3055 2

New

XHJSE

Machine foot XHJSE250(s)-XHJSE30150-RHOXS3055

Footplate diameter:249.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:8,423.00 g (18.57 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJE150(s)-HXE30150

Machine foot HXJE150(s)-HXE30150 2

New

SEISMIC

Machine foot HXJE150(s)-HXE30150

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:3.00|Net weight:4,570.00 g (10.08 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJCFE150(s)-HXE30150

Machine foot HXJCFE150(s)-HXE30150 2

New

SEISMIC

Machine foot HXJCFE150(s)-HXE30150

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,111.00 g (13.47 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJCFEHEX150(s)-HXEH36150

Machine foot HXJCFEHEX150(s)-HXEH36150 2

New

SEISMIC

Machine foot HXJCFEHEX150(s)-HXEH36150

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,398.00 g (14.11 lbs)|Thread size:M36|Thread standard:Metric C

View

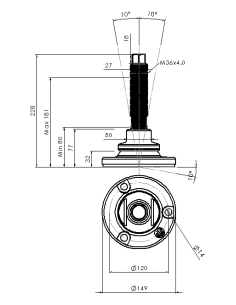

Machine foot HXJEHEX150(s)-HXEH36150

Machine foot HXJEHEX150(s)-HXEH36150 2

New

SEISMIC

Machine foot HXJEHEX150(s)-HXEH36150

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:3.00|Net weight:4,857.00 g (10.71 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJE200(s)-HXE30150

Machine foot HXJE200(s)-HXE30150 2

New

SEISMIC

Machine foot HXJE200(s)-HXE30150

Footplate diameter:199.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,270.00 g (13.82 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJEHEX200(s)-HXEH36150

Machine foot HXJEHEX200(s)-HXEH36150 2

New

SEISMIC

Machine foot HXJEHEX200(s)-HXEH36150

Footplate diameter:199.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,557.00 g (14.46 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJE250(s)-HXE30150

Machine foot HXJE250(s)-HXE30150 2

New

SEISMIC

Machine foot HXJE250(s)-HXE30150

Footplate diameter:249.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:8,101.00 g (17.86 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJEHEX250(s)-HXEH36150

Machine foot HXJEHEX250(s)-HXEH36150 2

New

SEISMIC

Machine foot HXJEHEX250(s)-HXEH36150

Footplate diameter:249.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:8,462.00 g (18.66 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot XHJCFE150(s)-XHJSE30150-RHOXS3055

Machine foot XHJCFE150(s)-XHJSE30150-RHOXS3055 2

New

XHJCFE

Machine foot XHJCFE150(s)-XHJSE30150-RHOXS3055

Footplate diameter:150.00|Height total:228.00 mm (8.98")|Mounting holes:4.00|Net weight:6,359.00 g (14.02 lbs)|Thread size:M30|Thread standard:Metric C

View

Machine foot KJ-AS180-UNC 5/8 x 8, AISI 304, Black NBR, 2 fixations

Machine foot KJ-AS180-UNC 5/8 x 8, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot KJ-AS180-UNC 5/8 x 8, AISI 304, Black NBR, 2 fixations

Footplate diameter:180.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:214.00 mm (8.43")|Min. adjustment:59.00 mm (2.32")|Mounting holes:2.00|Net weight:2,893.00 g (6.38 lbs)|Nom. load:13,000.00 N (2,922.52 lbs)|Nom. pull:8,000.00 N (1,798.47 lbs)|Rubber Type:Black NBR|Thread size:UNC 5/8|Thread standard:UNC

View

Machine foot HG-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR

Machine foot HG-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HG-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR

Footplate diameter:90.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:200.00 mm (7.87")|Min. adjustment:77.00 mm (3.03")|Mounting holes:0|Net weight:1,696.00 g (3.74 lbs)|Nom. load:40,000.00 N (8,992.36 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:UNC 1 1/4|Thread standard:UNC

View

Machine foot HG-AS110-UNC 1 1/4 x 8, AISI 304, Black NBR

Machine foot HG-AS110-UNC 1 1/4 x 8, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HG-AS110-UNC 1 1/4 x 8, AISI 304, Black NBR

Footplate diameter:110.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:200.00 mm (7.87")|Min. adjustment:77.00 mm (3.03")|Mounting holes:0|Net weight:2,037.00 g (4.49 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:UNC 1 1/4|Thread standard:UNC

View

Machine foot HJ-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR, 2 fixations

Machine foot HJ-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HJ-AS90-UNC 1 1/4 x 8, AISI 304, Black NBR, 2 fixations

Footplate diameter:90.00|Height total:228.00 mm (8.98")|Material:AISI 304|Max. adjustment:200.00 mm (7.87")|Min. adjustment:77.00 mm (3.03")|Mounting holes:2.00|Net weight:1,665.00 g (3.67 lbs)|Nom. load:30,000.00 N (6,744.27 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:UNC 1 1/4|Thread standard:UNC

View
