Levelling feet

SOLIDFULLYTHREADED

SOLIDFULLYTHREADED

PLASTICFULLYTHREADED

PLASTICFULLYTHREADED

XHJSE

XHJSE

SEISMIC

SEISMIC

XHJCFE

XHJCFE

WEIGHING

WEIGHING

XHSW

XHSW

XHTW

XHTW

XHJW

XHJW

XHW

XHW

XHGTW

XHGTW

M

HX

HX-FIX

HX-FIX

HXT

HXT

M-FIX

M-FIX

Showing 1-24 of 52 item(s)

Maschinenfuß XHJSE150-M36 x 150-M36, AISI 304, Black EPDM, 3

Maschinenfuß XHJSE150-M36 x 150-M36, AISI 304, Black EPDM, 3 2

New

XHJSE

Maschinenfuß XHJSE150-M36 x 150-M36, AISI 304, Black EPDM, 3

Footplate diameter:150.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:191.00 mm (7.52")|Min. adjustment:158.00 mm (6.22")|Mounting holes:3.00|Net weight:5,186.00 g (11.43 lbs)|Rubber Type:Black EPDM|Thread size:M36|Thread standard:Metric C

View

Machine foot XHJSE200(s)-XHJSE36150-RHOXS3655

Machine foot XHJSE200(s)-XHJSE36150-RHOXS3655 2

New

XHJSE

Machine foot XHJSE200(s)-XHJSE36150-RHOXS3655

Footplate diameter:199.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:6,886.00 g (15.18 lbs)|Thread size:M36|Thread standard:Metric C

View

Maschinenfuß XHJSE250-M36 x 150/80-M36 x 55, AISI 304, Black EPDM, 4

Maschinenfuß XHJSE250-M36 x 150/80-M36 x 55, AISI 304, Black EPDM, 4 2

New

XHJSE

Maschinenfuß XHJSE250-M36 x 150/80-M36 x 55, AISI 304, Black EPDM, 4

Footplate diameter:250.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:191.00 mm (7.52")|Min. adjustment:158.00 mm (6.22")|Mounting holes:4.00|Net weight:8,791.00 g (19.38 lbs)|Rubber Type:Black EPDM|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJCFE150(s)-HXE36150

Machine foot HXJCFE150(s)-HXE36150 2

New

SEISMIC

Machine foot HXJCFE150(s)-HXE36150

Footplate diameter:150.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:6,392.00 g (14.09 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJE150(s)-HXE36150

Machine foot HXJE150(s)-HXE36150 2

New

SEISMIC

Machine foot HXJE150(s)-HXE36150

Footplate diameter:150.00|Height total:221.00 mm (8.70")|Mounting holes:3.00|Net weight:4,851.00 g (10.69 lbs)|Thread size:M36|Thread standard:Metric C

View

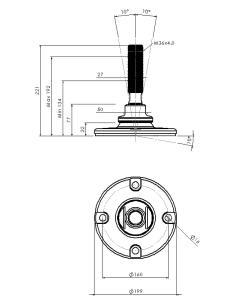

Machine foot HXJE200(s)-HXE36150

Machine foot HXJE200(s)-HXE36150 2

New

SEISMIC

Machine foot HXJE200(s)-HXE36150

Footplate diameter:199.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:6,551.00 g (14.44 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJE250(s)-HXE36150

Machine foot HXJE250(s)-HXE36150 2

New

SEISMIC

Machine foot HXJE250(s)-HXE36150

Footplate diameter:249.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:8,382.00 g (18.48 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot XHJCFE150(s)-XHJSE36150-RHOXS3655

Machine foot XHJCFE150(s)-XHJSE36150-RHOXS3655 2

New

XHJCFE

Machine foot XHJCFE150(s)-XHJSE36150-RHOXS3655

Footplate diameter:150.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:6,727.00 g (14.83 lbs)|Thread size:M36|Thread standard:Metric C

View

Maskinsko XHJSE200(s)-XHJSE36150-RHOXS3655-TIRX16540

New

XHJSE

Maskinsko XHJSE200(s)-XHJSE36150-RHOXS3655-TIRX16540

Footplate diameter:199.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:12,270.00 g (27.05 lbs)|Thread size:M36|Thread standard:Metric C

View

Maskinsko XHJSE200(s)-XHJSE36150-RHOXS3655-TIRX11436

New

XHJSE

Maskinsko XHJSE200(s)-XHJSE36150-RHOXS3655-TIRX11436

Footplate diameter:199.00|Height total:221.00 mm (8.70")|Mounting holes:4.00|Net weight:8,963.00 g (19.76 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXG125-M16 x 180, AISI 304

Machine foot HXG125-M16 x 180, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HXG125-M16 x 180, AISI 304

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:208.00 mm (8.19")|Min. adjustment:62.00 mm (2.44")|Mounting holes:0|Net weight:1,392.00 g (3.07 lbs)|Nom. load:19,400.00 N (4,361.29 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot HXG125-M20 x 180, AISI 304

Machine foot HXG125-M20 x 180, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HXG125-M20 x 180, AISI 304

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:205.00 mm (8.07")|Min. adjustment:65.00 mm (2.56")|Mounting holes:0|Net weight:1,543.00 g (3.40 lbs)|Nom. load:47,500.00 N (10,678.42 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot HXG125-M24 x 180, AISI 304

Machine foot HXG125-M24 x 180, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HXG125-M24 x 180, AISI 304

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:202.00 mm (7.95")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:1,730.00 g (3.81 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M24|Thread standard:Metric C

View

Machine foot HXG-AS105-M30 x 180, AISI 304, Black NBR

Machine foot HXG-AS105-M30 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS105-M30 x 180, AISI 304, Black NBR

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:197.00 mm (7.76")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:1,793.00 g (3.95 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C

View

Machine foot HXG-AS105-M36 x 180, AISI 304, Black NBR

Machine foot HXG-AS105-M36 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS105-M36 x 180, AISI 304, Black NBR

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:192.00 mm (7.56")|Min. adjustment:78.00 mm (3.07")|Mounting holes:0|Net weight:2,214.00 g (4.88 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C

View

Machine foot HXG-AS105-M42 x 180, AISI 304, Black NBR

Machine foot HXG-AS105-M42 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS105-M42 x 180, AISI 304, Black NBR

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:187.00 mm (7.36")|Min. adjustment:83.00 mm (3.27")|Mounting holes:0|Net weight:2,718.00 g (5.99 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M42|Thread standard:Metric C

View

Machine foot HXG-AS125-M30 x 180, AISI 304, Black NBR

Machine foot HXG-AS125-M30 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS125-M30 x 180, AISI 304, Black NBR

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:197.00 mm (7.76")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:2,091.00 g (4.61 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C

View

Machine foot HXG-AS125-M36 x 180, AISI 304, Black NBR

Machine foot HXG-AS125-M36 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS125-M36 x 180, AISI 304, Black NBR

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:192.00 mm (7.56")|Min. adjustment:78.00 mm (3.07")|Mounting holes:0|Net weight:2,512.00 g (5.54 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C

View

Machine foot HXG-AS125-M42 x 180, AISI 304, Black NBR

Machine foot HXG-AS125-M42 x 180, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HXG-AS125-M42 x 180, AISI 304, Black NBR

Footplate diameter:125.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:187.00 mm (7.36")|Min. adjustment:83.00 mm (3.27")|Mounting holes:0|Net weight:3,015.00 g (6.65 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M42|Thread standard:Metric C

View

Machine foot HXJ105-M16 x 180, AISI 304, 2 fixations

Machine foot HXJ105-M16 x 180, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HXJ105-M16 x 180, AISI 304, 2 fixations

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:208.00 mm (8.19")|Min. adjustment:62.00 mm (2.44")|Mounting holes:2.00|Net weight:1,070.00 g (2.36 lbs)|Nom. load:19,400.00 N (4,361.29 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M16|Thread standard:Metric C

View

Machine foot HXJ105-M20 x 180, AISI 304, 2 fixations

Machine foot HXJ105-M20 x 180, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HXJ105-M20 x 180, AISI 304, 2 fixations

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:205.00 mm (8.07")|Min. adjustment:65.00 mm (2.56")|Mounting holes:2.00|Net weight:1,221.00 g (2.69 lbs)|Nom. load:47,500.00 N (10,678.42 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M20|Thread standard:Metric C

View

Machine foot HXJ105-M24 x 180, AISI 304, 2 fixations

Machine foot HXJ105-M24 x 180, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HXJ105-M24 x 180, AISI 304, 2 fixations

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:202.00 mm (7.95")|Min. adjustment:68.00 mm (2.68")|Mounting holes:2.00|Net weight:1,408.00 g (3.10 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Thread size:M24|Thread standard:Metric C

View

Machine foot HXJ-AS105-M30 x 180, AISI 304, Black NBR, 2 fixations

Machine foot HXJ-AS105-M30 x 180, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HXJ-AS105-M30 x 180, AISI 304, Black NBR, 2 fixations

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:197.00 mm (7.76")|Min. adjustment:73.00 mm (2.87")|Mounting holes:2.00|Net weight:1,768.00 g (3.90 lbs)|Nom. load:101,500.00 N (22,818.11 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C

View

Machine foot HXJ-AS105-M36 x 180, AISI 304, Black NBR, 2 fixations

Machine foot HXJ-AS105-M36 x 180, AISI 304, Black NBR, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot HXJ-AS105-M36 x 180, AISI 304, Black NBR, 2 fixations

Footplate diameter:105.00|Height total:221.00 mm (8.70")|Material:AISI 304|Max. adjustment:192.00 mm (7.56")|Min. adjustment:78.00 mm (3.07")|Mounting holes:2.00|Net weight:2,189.00 g (4.83 lbs)|Nom. load:110,000.00 N (24,728.98 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Black NBR|Thread size:M36|Thread standard:Metric C

View
