New

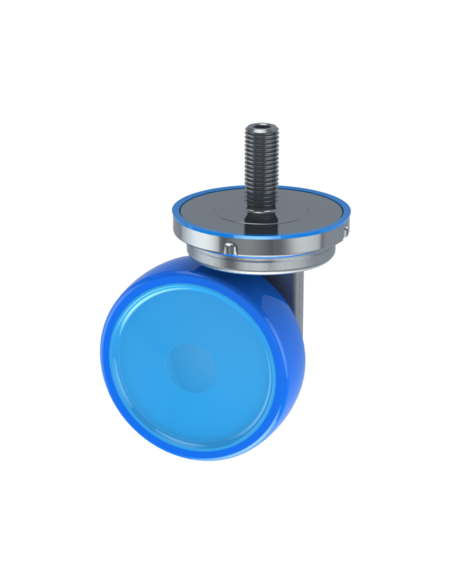

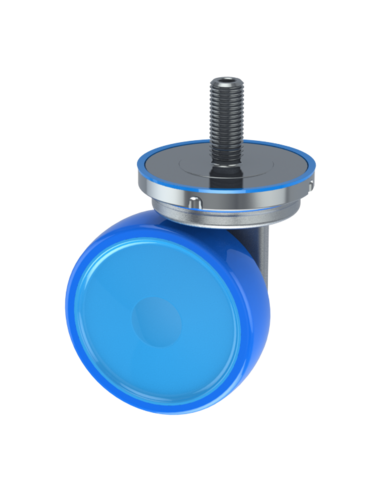

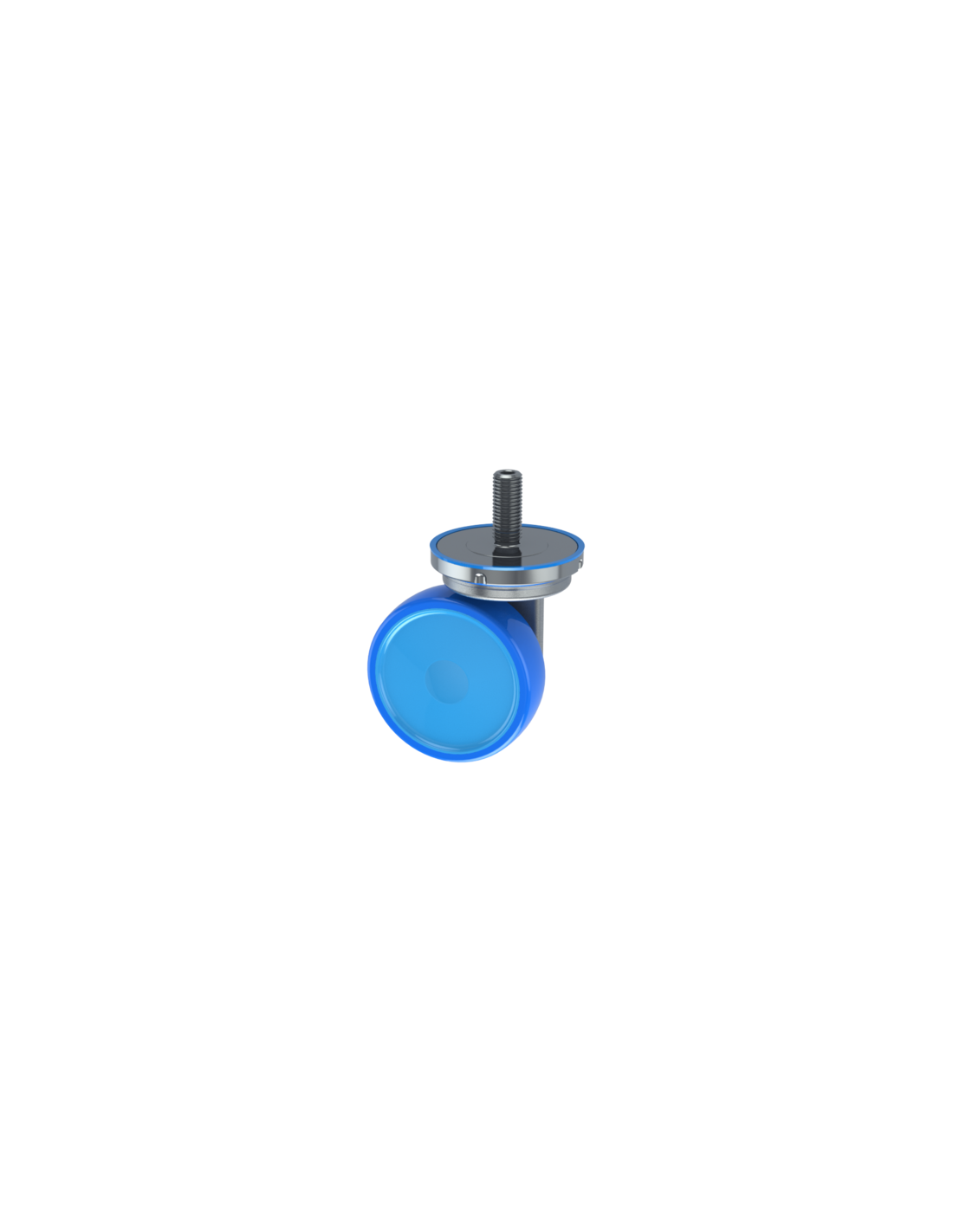

Castor XSCR100, Blue, M16 x 40-M16

Castor XSCR100, Blue, M16 x 40-M16

Castor XSCR100, Blue, M16 x 40-M16

Castor XSCR100, Blue, M16 x 40-M16

Castor XSCR100, Blue, M16 x 40-M16

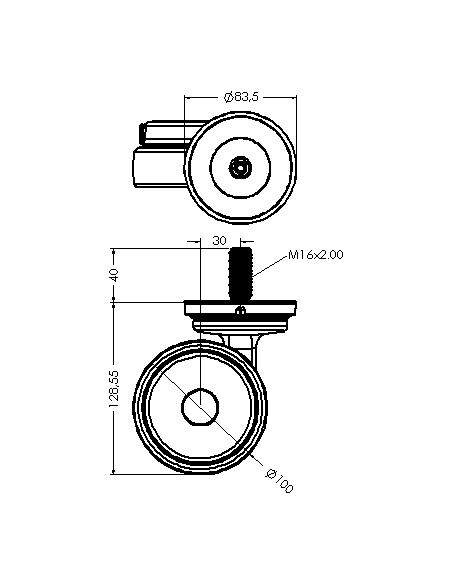

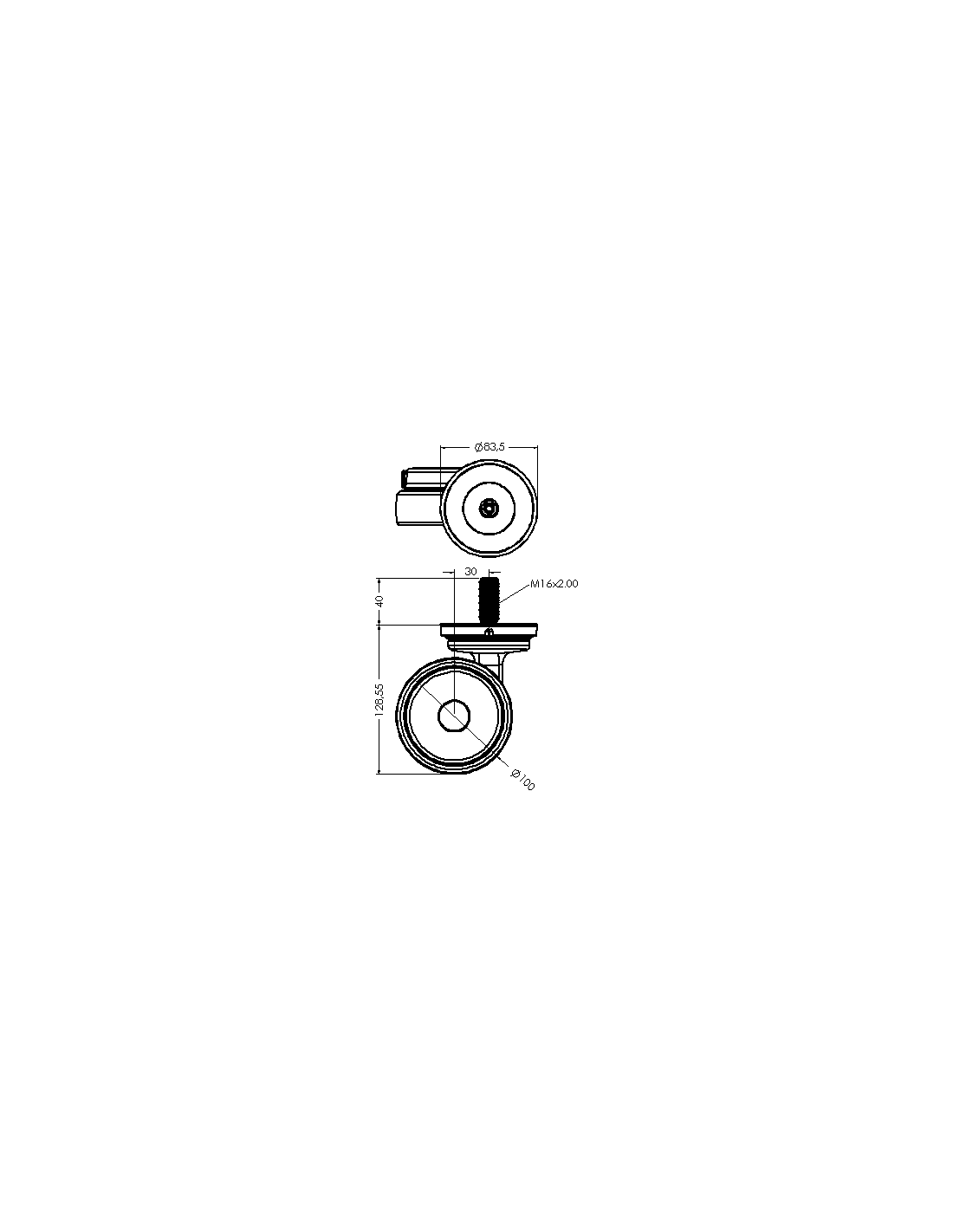

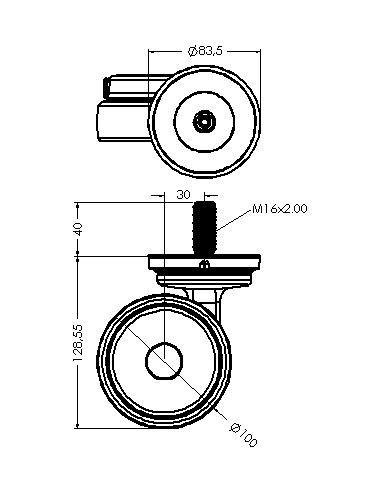

Castor diameter:100.00 mm (3.94")|Castor fitting:Single bolt hole|Castor height:128.50 mm (5.06")|Dynamic load:1,964.00 N (441.52 lbs)|Net weight:1,366.00 g (3.01 lbs)|Swivel castor:Swivel|Thread size:M16|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

The design and patent protected XSCR certified hygienic swivel castor is a castor with round thread mounting. The XSCR castor is the optimal choice for machinery and equipment that has to comply with strict hygiene requirements.

Net Weight: 1,366.00 g (3.01 lbs)
Thread Size: M16
Thread standard: Metric C
Dynamic load: 1,964.00 N (441.52 lbs)
Castor diameter: 100.00 mm (3.94")
Castor height: 128.50 mm (5.06")
Swivel castor: Swivel
Castor fitting: Single bolt hole

Reference 1019979

MPN 1019979
