Machine foot XHW080-XHM121083-RHOX1032-PR6211-31D1
Footplate diameter:80.00|Height total:249.00 mm (9.80")|Mounting holes:0|Net weight:1,529.00 g (3.37 lbs)|Thread size:UNC 1|Thread standard:UNC|Weighing capacity:295.00 N (66.32 lbs)
Technical Guidance
Need help choosing? Discuss your application with us.
Product Specifications
Check dimensions, materials and compatibility before ordering.
Delivery Information
Contact us for delivery options and estimated lead times.
Product Support
Get in touch about documentation, care or product queries.

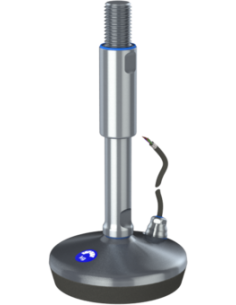

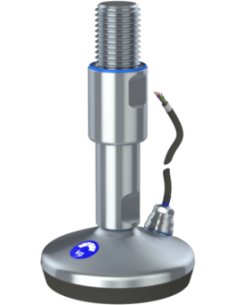

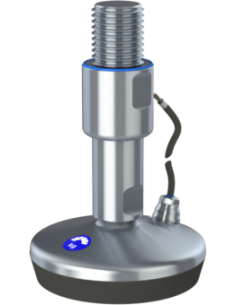

The design and patent protected XHW weighing levelling foot is the optimal choice for supporting and weighing machinery, equipment, tanks and vessels in environments with strict hygienic requirements. The load cell is secured, guided and protected inside the foot. - Secured: Load cell is secured against hazardous mechanical external impacts - Guided: Can obtain strong forces in all directions without affecting the load cell - Protected: Against external influences like corrosion, temperatures and bacteria The XHW levelling foot is hygienically sealed to the floor by vulcanized FDA-approved, anti-vibration, anti-slip rubber, which blocks out bacteria underneath the footplate and protects the load cell. - Maintenance free and height-adjustable compact design - Simple and fast installation - no mounting kit needed - The different load cells cover a span of 30kg to 5000 kg - Designed according to the 3-A and EHEDG hygienic standards - Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401
- Net Weight
- 1,529.00 g (3.37 lbs)
- Thread Size
- UNC 1
- Thread standard
- UNC
- Height total
- 249.00 mm (9.80")
- Footplate diameter
- 80
- Weighing capacity
- 295.00 N (66.32 lbs)
