- New

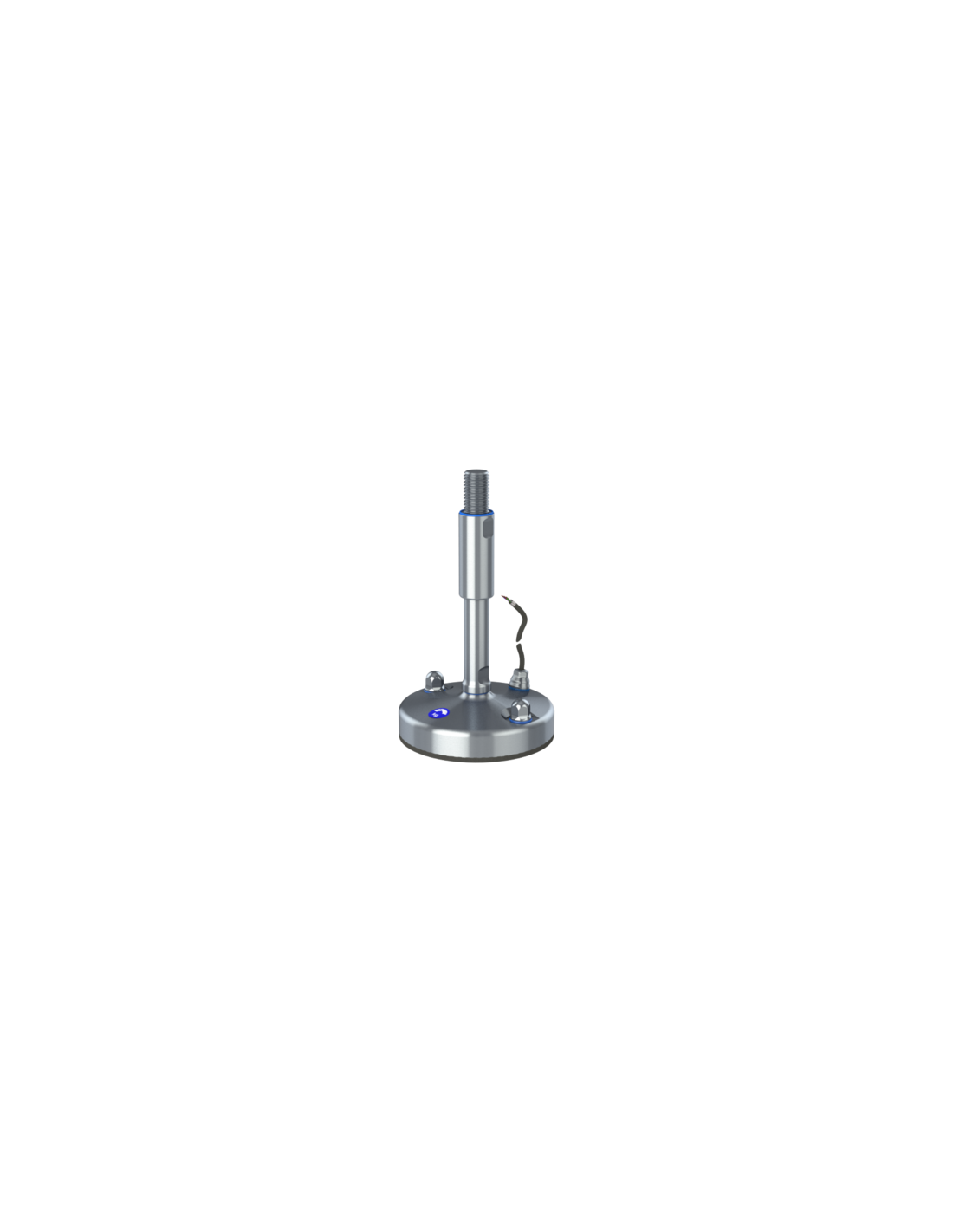

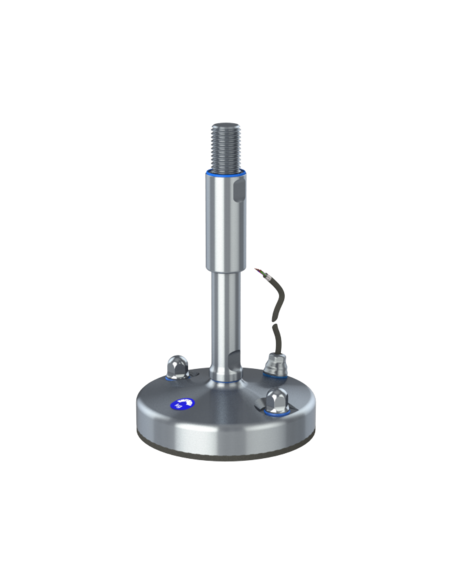

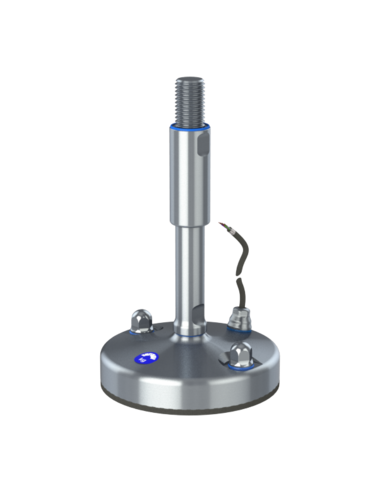

Machine foot
Footplate diameter:150.00|Height total:255.00 mm (10.04")|Mounting holes:2.00|Net weight:5,028.00 g (11.08 lbs)|Thread size:M24|Thread standard:Metric C|Weighing capacity:4,910.00 N (1,103.81 lbs)
Technical Guidance
Need help choosing? Discuss your application with us.
Product Specifications
Check dimensions, materials and compatibility before ordering.
Delivery Information
Contact us for delivery options and estimated lead times.
Product Support
Get in touch about documentation, care or product queries.
The design and patent protected XHJW weighing levelling foot is the optimal choice for supporting and weighing machinery, equipment, tanks and vessels in environments with strict hygienic requirements. The load cell is secured, guided and protected inside the foot. - Secured: Load cell is secured against hazardous mechanical external impacts - Guided: Can obtain strong forces in all directions without affecting the load cell - Protected: Against external influences like corrosion, temperatures and bacteria The XHJW is designed to be fastened to the floor by the two fixing holes in the footplate. - Maintenance free and height-adjustable compact design - Simple and fast installation - no mounting kit needed - The different load cells cover a span of 30 kg to 5.000 kg - Designed according to the 3-A and EHEDG hygienic standards - Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401
- Net Weight
- 5,028.00 g (11.08 lbs)
- Thread Size
- M24
- Thread standard
- Metric C
- Height total
- 255.00 mm (10.04")
- Mounting holes
- 2
- Footplate diameter
- 150
- Weighing capacity
- 4,910.00 N (1,103.81 lbs)
3001183
3001183
