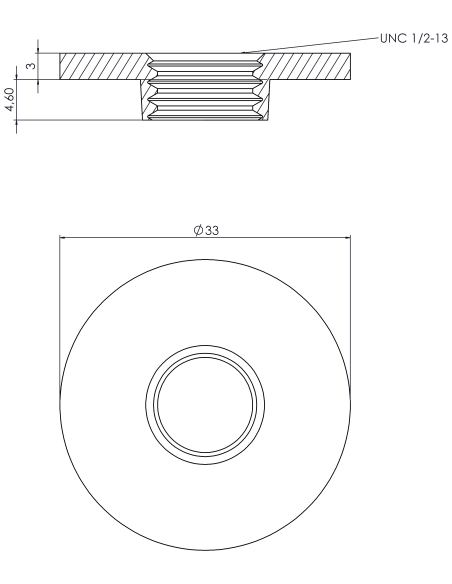

Welding plate round Ø33x3, UNC 1/2, AISI 316

Welding plate round Ø33x3, UNC 1/2, AISI 316

Welding plate round Ø33x3, UNC 1/2, AISI 316

Welding plate round Ø33x3, UNC 1/2, AISI 316

Welding plate round Ø33x3, UNC 1/2, AISI 316

Material:AISI 316|Net weight:20.00 g (0.04 lbs)|NominalLoad:4,650.00 N (1,045.36 lbs)|Thread length:7.60 mm (0.30")|Thread size:UNC 1/2|Thread standard:UNC

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

The welding plates provide complete sealing of the tube after welding. The welding plates are available for rectangular and round tubes. - Stainless steel AISI 316/A4, 1.4401 - Squared welding plates - Round welding plates - All dimensions available.

Net Weight: 20.00 g (0.04 lbs)
Thread Size: UNC 1/2
Thread standard: UNC
Material: AISI 316
Thread length: 7.60 mm (0.30")
NominalLoad: 4,650.00 N (1,045.36 lbs)

Reference 70025

MPN 70025
