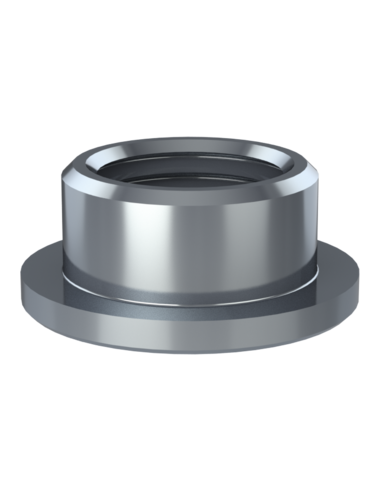

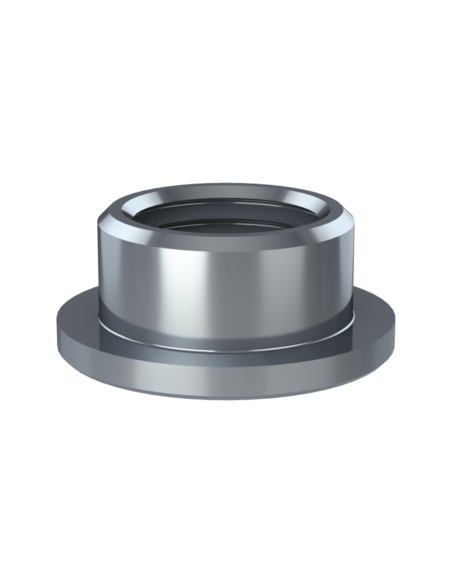

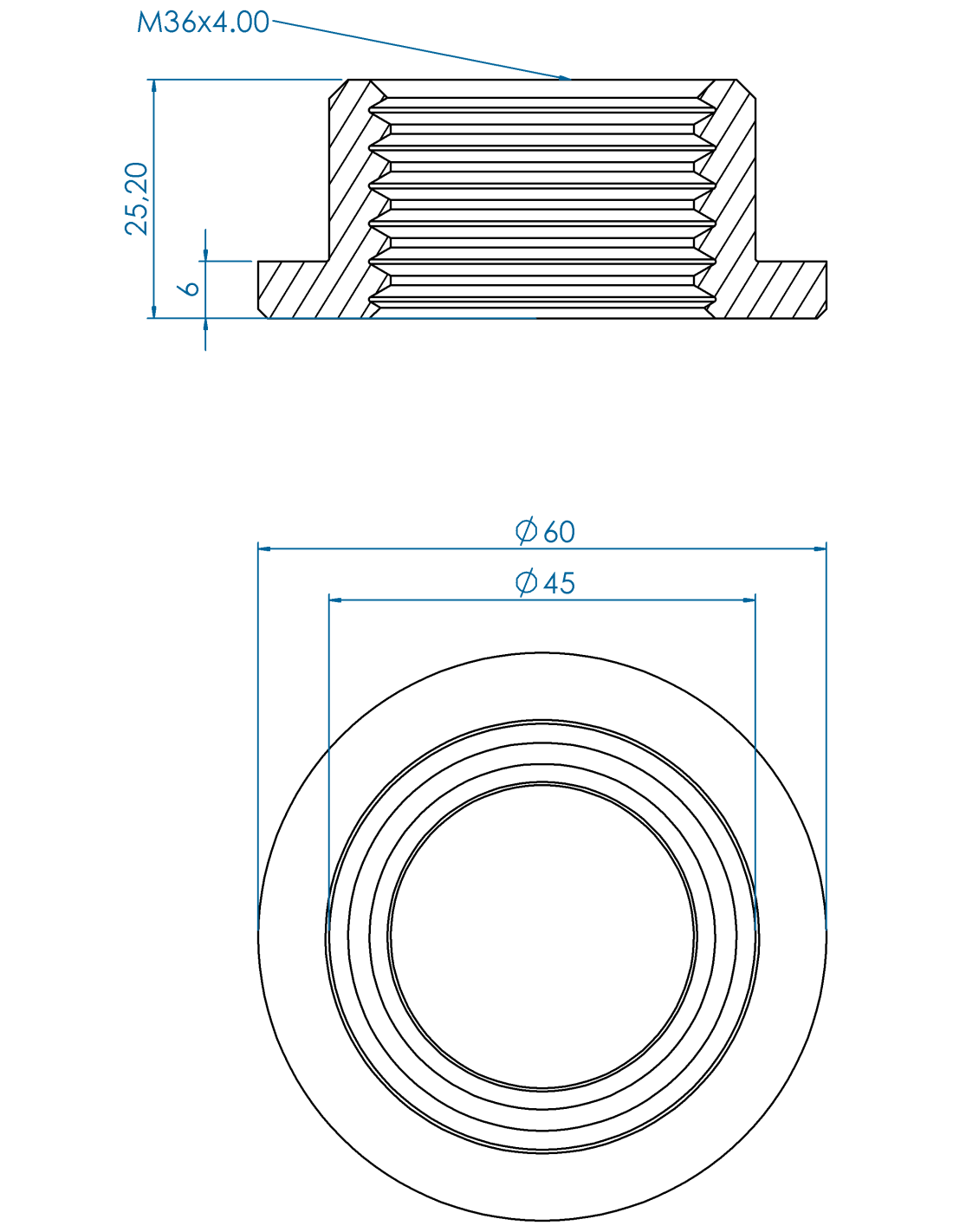

Threaded insert TIR Ø60x6, 45x19.20, M36, AISI 304

Threaded insert TIR Ø60x6, 45x19.20, M36, AISI 304

Threaded insert TIR Ø60x6, 45x19.20, M36, AISI 304

Threaded insert TIR Ø60x6, 45x19.20, M36, AISI 304

Threaded insert TIR Ø60x6, 45x19.20, M36, AISI 304

Material:AISI 304|Net weight:192.00 g (0.42 lbs)|NominalLoad:73,392.00 N (16,499.18 lbs)|Thread length:25.20 mm (0.99")|Thread size:M36|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

NGI is able to deliver all necessary accessories, which ensures a quick and easy installation of the levelling foot, bearing house and castor.

Net Weight: 192.00 g (0.42 lbs)
Thread Size: M36
Thread standard: Metric C
Material: AISI 304
Thread length: 25.20 mm (0.99")
NominalLoad: 73,392.00 N (16,499.18 lbs)

Reference 80279

MPN 80279
