SOLIDFULLYTHREADED

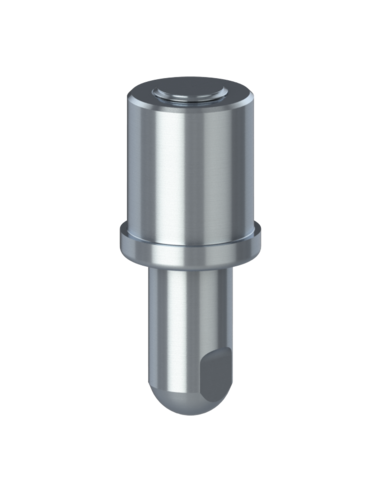

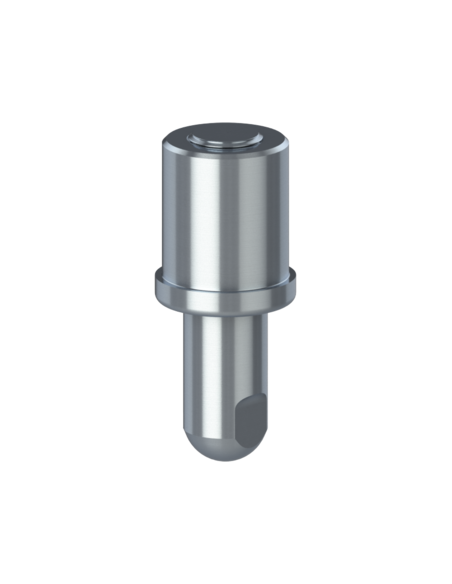

Tank support bolts SBX(r15)BSPP
Max. adjustment:67.00 mm (2.64")|Min. adjustment:37.00 mm (1.46")|Net weight:1,019.00 g (2.25 lbs)|Nom. load:78,309.00 N (17,604.56 lbs)|Thread size:BSPP 3/4-14|Thread standard:BSPP
Technical Guidance
Need help choosing? Discuss your application with us.
Product Specifications
Check dimensions, materials and compatibility before ordering.
Delivery Information
Contact us for delivery options and estimated lead times.
Product Support
Get in touch about documentation, care or product queries.
Type SBX
The SBX support bolt is the optimal choice for extremely heavy machinery, equipment, tanks and vessels in diverse production environments.Limited cleaning effort is obtained by sealing the welding connector with a fixed blue sealing ring that is detectable by scanning systems. The SBX support bolt secures your heavy machinery with a hygienic design.Standard sizes are listed on the datasheet. Optional customized designs are available upon request.
- Net Weight
- 1,019.00 g (2.25 lbs)
- Thread Size
- BSPP 3/4-14
- Thread standard
- BSPP
- Max. adjustment
- 67.00 mm (2.64")
- Min. adjustment
- 37.00 mm (1.46")
- Nom. load
- 78,309.00 N (17,604.56 lbs)
