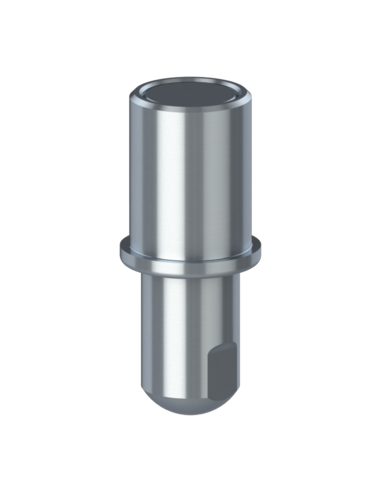

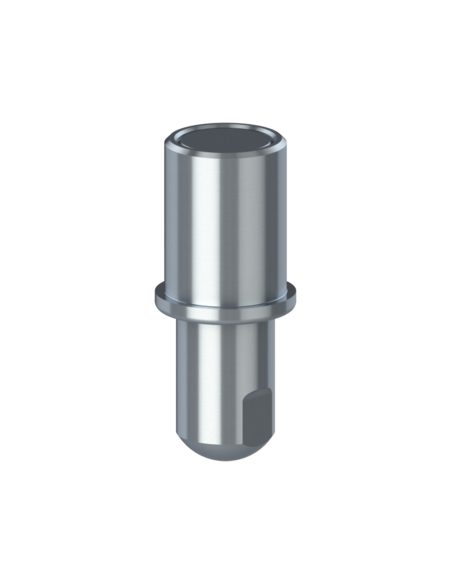

Tank support bolts SBX(r24)BSPP

Tank support bolts SBX(r24)BSPP

Tank support bolts SBX(r24)BSPP

Tank support bolts SBX(r24)BSPP

Tank support bolts SBX(r24)BSPP

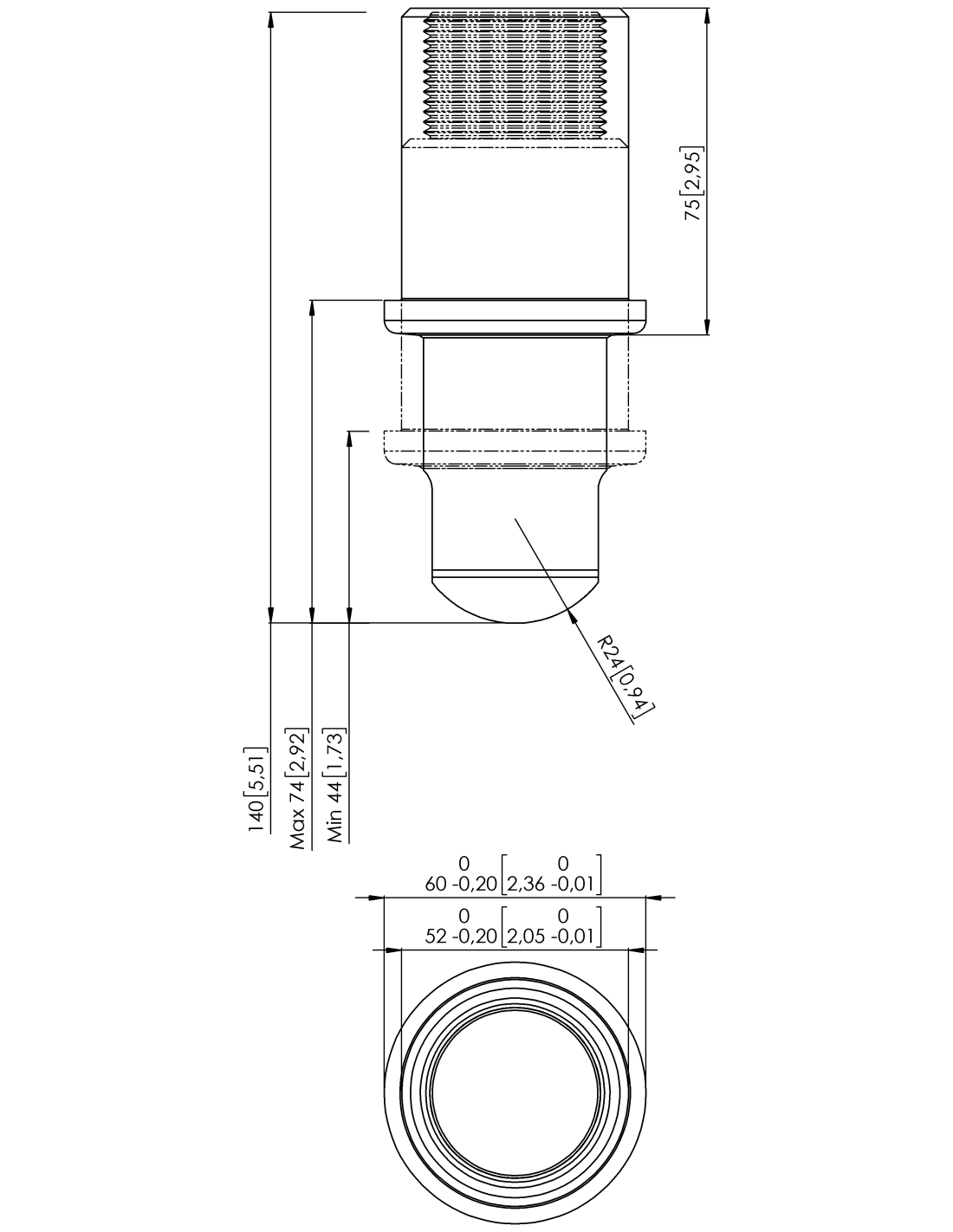

Max. adjustment:75.00 mm (2.95")|Min. adjustment:45.00 mm (1.77")|Net weight:1,908.00 g (4.21 lbs)|Nom. load:204,021.00 N (45,865.75 lbs)|Thread size:BSPP 1 1/4-11|Thread standard:BSPP

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

Type SBX

The SBX support bolt is the optimal choice for extremely heavy machinery, equipment, tanks and vessels in diverse production environments.Limited cleaning effort is obtained by sealing the welding connector with a fixed blue sealing ring that is detectable by scanning systems. The SBX support bolt secures your heavy machinery with a hygienic design.Standard sizes are listed on the datasheet. Optional customized designs are available upon request.

Net Weight: 1,908.00 g (4.21 lbs)
Thread Size: BSPP 1 1/4-11
Thread standard: BSPP
Max. adjustment: 75.00 mm (2.95")
Min. adjustment: 45.00 mm (1.77")
Nom. load: 204,021.00 N (45,865.75 lbs)

Reference 5000135

MPN 5000135
