- New
SOLIDFULLYTHREADED

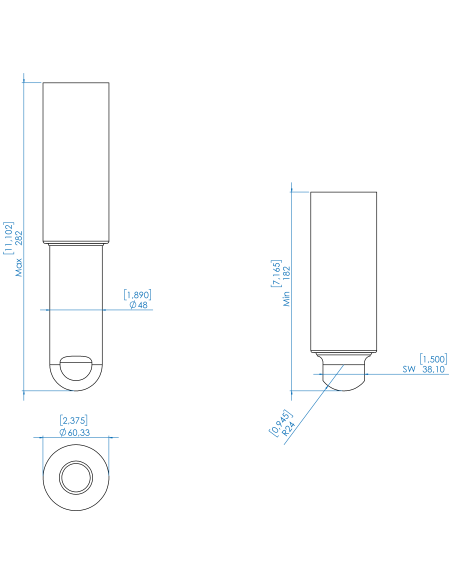

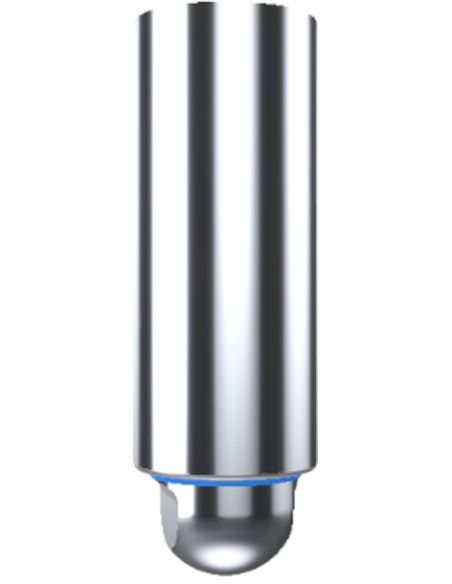

Weld mount BTX OD 2,38"x282/182, AISI 304
Material:AISI 304|Max. adjustment:282.00 mm (11.10")|Min. adjustment:182.00 mm (7.17")|Net weight:3,511.00 g (7.74 lbs)|Nom. load:112,292.00 N (25,244.25 lbs)|Thread size:M30|Thread standard:Metric C
Technical Guidance
Need help choosing? Discuss your application with us.
Product Specifications
Check dimensions, materials and compatibility before ordering.
Delivery Information
Contact us for delivery options and estimated lead times.
Product Support
Get in touch about documentation, care or product queries.
The BTX weld-mounts are the optimal choice for extremely heavy machinery, equipment, tanks and vessels in diverse production environments. Our weld-mounts do not require fixing inside the machine as levelling feet do. Unlike levelling feet, the adjustment of a weld-mount happens inside the spindle. They can be easily scaled to fit pipes and are commonly placed at the end of pipes and tubes. • Small touch surface • Hygienic 3-A and USDA design • Weld-mount style easily welds to tube or pipe • Manufactured using 304 stainless steel • Sealed with O-ring elastomers • No exposed threads
- Net Weight
- 3,511.00 g (7.74 lbs)
- Thread Size
- M30
- Thread standard
- Metric C
- Material
- AISI 304
- Max. adjustment
- 282.00 mm (11.10")
- Min. adjustment
- 182.00 mm (7.17")
- Nom. load
- 112,292.00 N (25,244.25 lbs)
5000190
5000190
