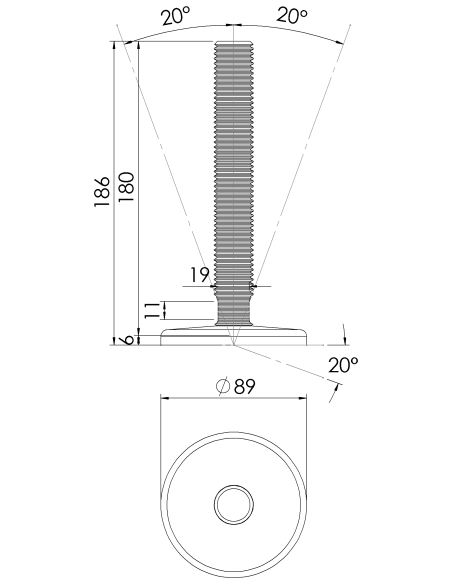

Machine foot KT90-M24 x 180, AISI 304
Machine foot KT90-M24 x 180, AISI 304
Machine foot KT90-M24 x 180, AISI 304
Machine foot KT90-M24 x 180, AISI 304

Machine foot KT90-M24 x 180, AISI 304

Footplate diameter:90.00|Height total:186.00 mm (7.32")|Material:AISI 304|Max. adjustment:167.00 mm (6.57")|Min. adjustment:52.00 mm (2.05")|Mounting holes:0|Net weight:1,030.00 g (2.27 lbs)|Nom. load:69,200.00 N (15,556.78 lbs)|Nom. pull:0|Thread size:M24|Thread standard:Metric C

  Technical Guidance

Need help choosing? Discuss your application with us.

  Product Specifications

Check dimensions, materials and compatibility before ordering.

  Delivery Information

Contact us for delivery options and estimated lead times.

  Product Support

Get in touch about documentation, care or product queries.

Product Enquiry

Need the right fit?

Contact us for product selection, availability and a quotation.

Please include:

  • Product name or reference
  • Required quantity
  • Application and technical requirements
Request a quotation

Not sure which component you need? Send us your requirements.



Type KT/KT AS

The solid KT levelling foot is the optimal choice for heavy machinery and equipment in diverse production environments.The KT and KT AS consist of a separated footplate and spindle connected by the diametrically centered depression in the footplate designed for extreme high load.The KT AS is supplied with anti-vibration and anti-slip NBR rubber (by request EPDM).

Net Weight
1,030.00 g (2.27 lbs)
Thread Size
M24
Thread standard
Metric C
Height total
186.00 mm (7.32")
Material
AISI 304
Max. adjustment
167.00 mm (6.57")
Min. adjustment
52.00 mm (2.05")
Footplate diameter
90
Nom. load
69,200.00 N (15,556.78 lbs)
1006304
1006304
