New

Castor SCSB125, White, AISI 304, 6.874

Castor SCSB125, White, AISI 304, 6.874

Castor SCSB125, White, AISI 304, 6.874

Castor SCSB125, White, AISI 304, 6.874

Castor SCSB125, White, AISI 304, 6.874

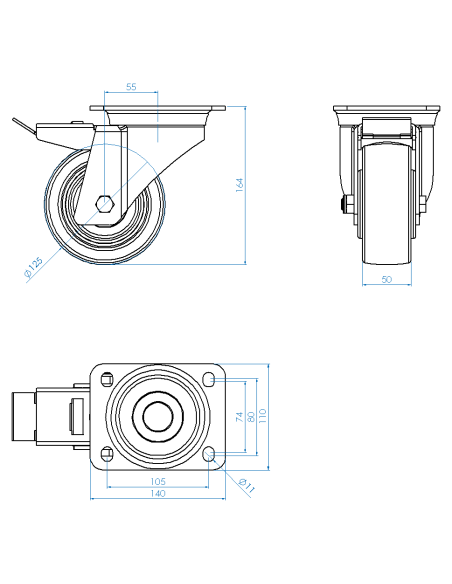

Castor diameter:125.00 mm (4.92")|Castor height:164.00 mm (6.46")|Dynamic load:6,874.00 N (1,545.34 lbs)|Net weight:3,118.00 g (6.87 lbs)|Swivel castor:Swivel|Temperatur max:80.00|Temperatur min:-30

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

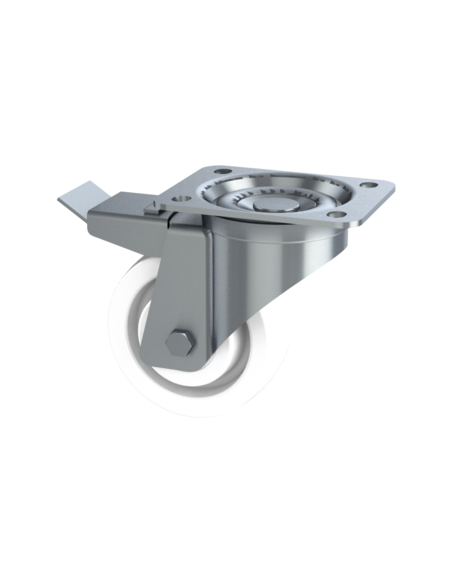

The SCSB hygienic swivel castor with a fixing plate is theoptimal choice for machinery and equipment in diverse sanitary production environments. The SCSB is equipped with a brake on swivel and wheel.

Net Weight: 3,118.00 g (6.87 lbs)
Dynamic load: 6,874.00 N (1,545.34 lbs)
Castor diameter: 125.00 mm (4.92")
Castor height: 164.00 mm (6.46")
Swivel castor: Swivel
Temperatur max: 80
Temperatur min: -30

Reference 200071

MPN 200071
