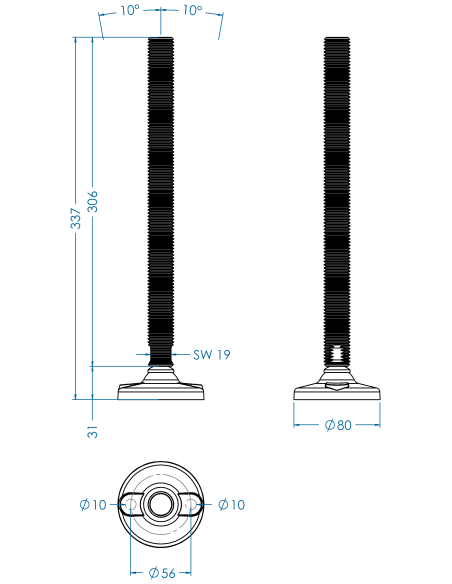

Machine foot HPA-FIX81-M24 x 310, AISI 304, 2 fixations

Machine foot HPA-FIX81-M24 x 310, AISI 304, 2 fixations

Machine foot HPA-FIX81-M24 x 310, AISI 304, 2 fixations

Machine foot HPA-FIX81-M24 x 310, AISI 304, 2 fixations

Machine foot HPA-FIX81-M24 x 310, AISI 304, 2 fixations

Footplate diameter:81.00|Height total:337.00 mm (13.27")|Material:AISI 304|Max. adjustment:317.00 mm (12.48")|Min. adjustment:68.00 mm (2.68")|Mounting holes:2.00|Net weight:996.00 g (2.20 lbs)|Nom. load:10,000.00 N (2,248.09 lbs)|Nom. pull:300.00 N (67.44 lbs)|Thread size:M24|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

The product group of fully-threaded levelling feet is the optimal choice for machinery and equipment in diverse production environments. Because of the wide variety and functionality these fully-threaded levelling feet offer great value-for-money and for the majority of the models a hygienic-oriented design because of the self-draining surfaces.

Net Weight: 996.00 g (2.20 lbs)
Thread Size: M24
Thread standard: Metric C
Height total: 337.00 mm (13.27")
Material: AISI 304
Max. adjustment: 317.00 mm (12.48")
Min. adjustment: 68.00 mm (2.68")
Mounting holes: 2
Footplate diameter: 81
Nom. load: 10,000.00 N (2,248.09 lbs)
Nom. pull: 300.00 N (67.44 lbs)

Reference 1009707

MPN 1009707
