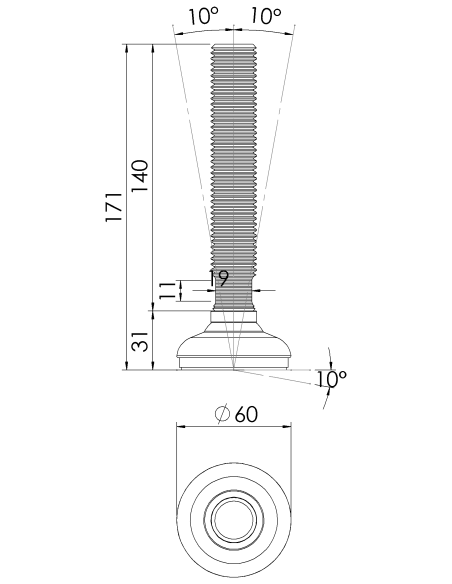

Machine foot HP60-M24 x 150, AISI 304

Machine foot HP60-M24 x 150, AISI 304

Machine foot HP60-M24 x 150, AISI 304

Machine foot HP60-M24 x 150, AISI 304

Machine foot HP60-M24 x 150, AISI 304

Footplate diameter:60.00|Height total:172.00 mm (6.77")|Material:AISI 304|Max. adjustment:152.00 mm (5.98")|Min. adjustment:69.00 mm (2.72")|Mounting holes:0|Net weight:501.00 g (1.10 lbs)|Nom. load:0|Thread size:M24|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

Type HP

The HP plastic fully-threaded levelling foot is the optimal choice for low- and middle weight machinery and equipment in diverse production environments.It is possible to fasten the levelling foot to the floor by the two pre-drilled fixing holes located under the watertight plastic cap lowering the cleaning effort*. Bolts, nuts and washers can be supplied.

*Footplate 60 mm. does not have fixing holes.

Net Weight: 501.00 g (1.10 lbs)
Thread Size: M24
Thread standard: Metric C
Height total: 172.00 mm (6.77")
Material: AISI 304
Max. adjustment: 152.00 mm (5.98")
Min. adjustment: 69.00 mm (2.72")
Footplate diameter: 60

Reference 1009281

MPN 1009281
