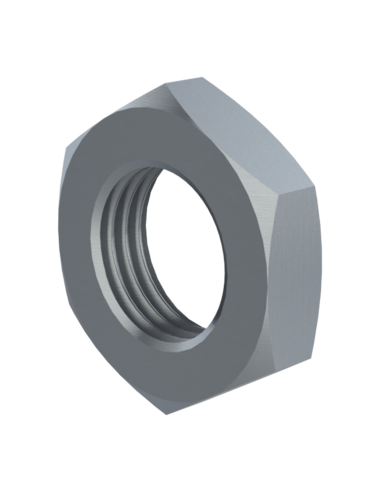

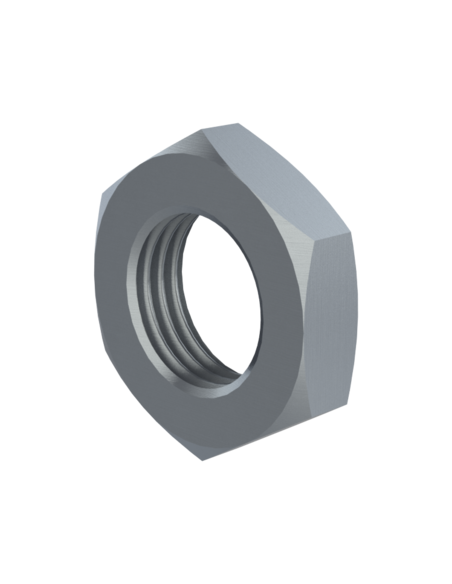

Counter nut UNC 1-8, ASME B18.2.2, A2-35

Counter nut UNC 1-8, ASME B18.2.2, A2-35

Counter nut UNC 1-8, ASME B18.2.2, A2-35

Drawing no.:NGI 264968|Material:A2-35|Net weight:88.85 g (0.20 lbs)|Thread size:UNC 1|Thread standard:UNC|Type:Nut

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

We offer a variety of standard nut types for your needs. Our first option is the standard nuts, which are made of stainless steel AISI 304/A2, 1.4301. Their flat design makes them ideal for shorter threads. Another option we have is the counter nuts (DIN 439). Counter nuts are typically used in combination with a standard hexagon nut.

Net Weight: 88.85 g (0.20 lbs)
Thread Size: UNC 1
Thread standard: UNC
Material: A2-35
Type: Nut

Reference 950098

MPN 950098
