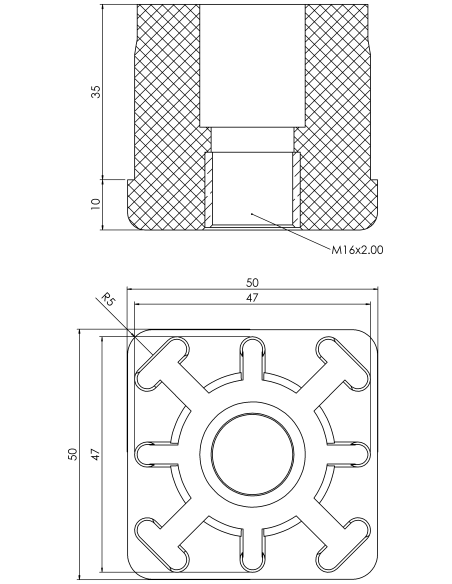

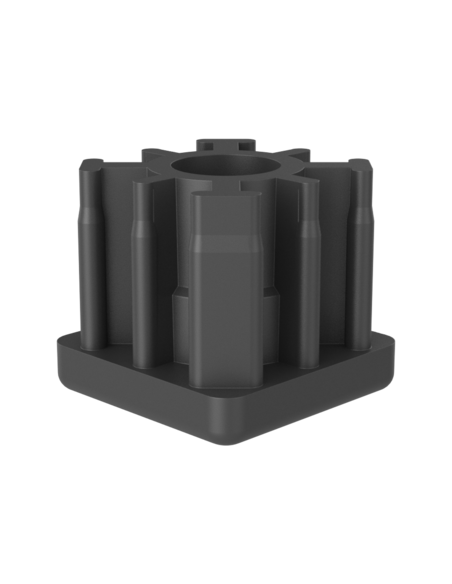

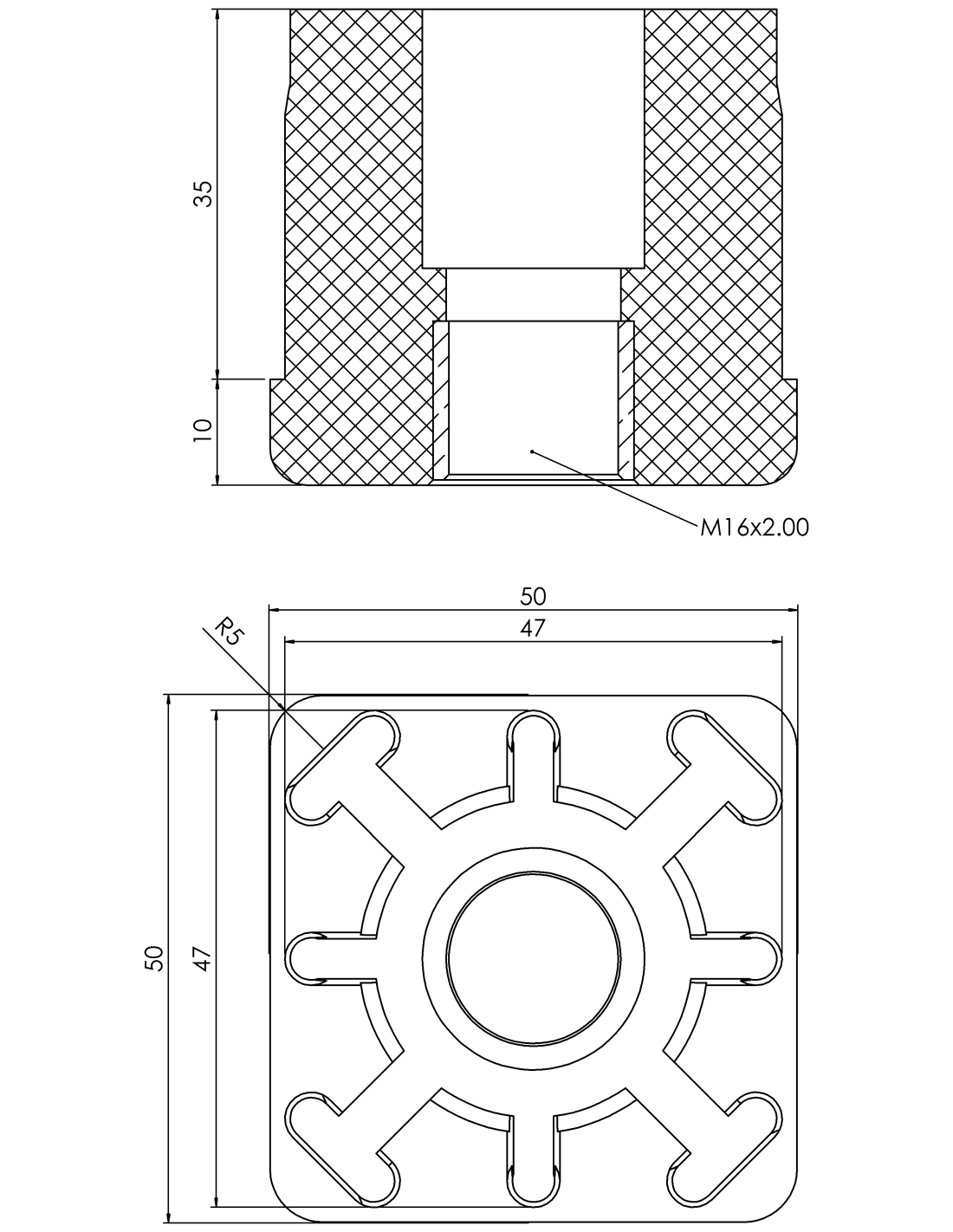

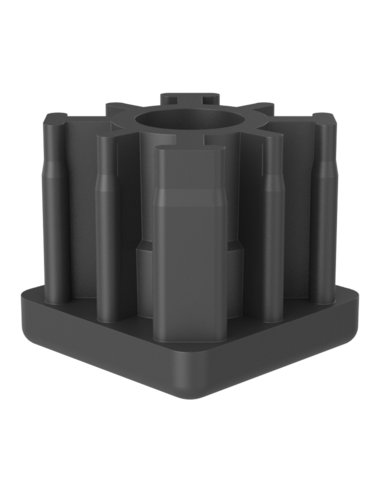

Threaded bushing PTIQ, 50x50x1,5, M16

Threaded bushing PTIQ, 50x50x1,5, M16

Threaded bushing PTIQ, 50x50x1,5, M16

Threaded bushing PTIQ, 50x50x1,5, M16

Threaded bushing PTIQ, 50x50x1,5, M16

Net weight:72.00 g (0.16 lbs)|NominalLoad:9,000.00 N (2,023.28 lbs)|Thread length:15.00 mm (0.59")|Thread size:M16|Thread standard:Metric C

Technical Guidance

Need help choosing? Discuss your application with us.

Product Specifications

Check dimensions, materials and compatibility before ordering.

Delivery Information

Contact us for delivery options and estimated lead times.

Product Support

Get in touch about documentation, care or product queries.

Description
Product Details

NGI is able to deliver all necessary accessories, which ensures a quick and easy installation of the levelling foot, bearing house and castor.

Net Weight: 72.00 g (0.16 lbs)
Thread Size: M16
Thread standard: Metric C
Thread length: 15.00 mm (0.59")
NominalLoad: 9,000.00 N (2,023.28 lbs)

Reference 950164

MPN 950164
