New HX Machine foot HX125-UNC 1/2 x 3, AISI 304, Black NBR 1003813 Footplate diameter:125.00|Height total:116.00 mm (4.57")|Material:AISI 304|Max. adjustment:105.00 mm (4.13")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:645.00 g (1.42 lbs)|Nom. load:18,500.00 N (4,158.97 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View
New HX Machine foot HX125-UNC 1/2 x 4, AISI 304, Black NBR 1003814 Footplate diameter:125.00|Height total:142.00 mm (5.59")|Material:AISI 304|Max. adjustment:130.00 mm (5.12")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:666.00 g (1.47 lbs)|Nom. load:18,500.00 N (4,158.97 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View
New HX Machine foot HX125-UNC 1/2 x 6, AISI 304, Black NBR 1003816 Footplate diameter:125.00|Height total:192.00 mm (7.56")|Material:AISI 304|Max. adjustment:181.00 mm (7.13")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:705.00 g (1.55 lbs)|Nom. load:11,400.00 N (2,562.82 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View
New HX Machine foot HX125-UNC 1/2 x 8, AISI 304, Black NBR 1003818 Footplate diameter:125.00|Height total:243.00 mm (9.57")|Material:AISI 304|Max. adjustment:232.00 mm (9.13")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:751.00 g (1.66 lbs)|Nom. load:6,400.00 N (1,438.78 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

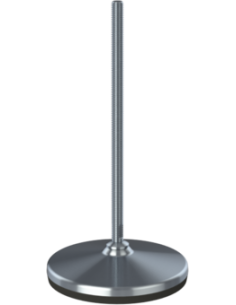

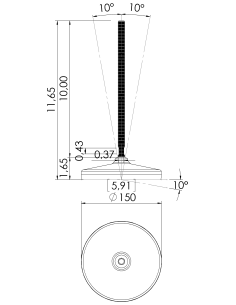

New HX Machine foot HX150-UNC 1/2 x 10, AISI 304, Black NBR 1003880 Footplate diameter:150.00|Height total:296.00 mm (11.65")|Material:AISI 304|Max. adjustment:285.00 mm (11.22")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,156.00 g (2.55 lbs)|Nom. load:4,100.00 N (921.72 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

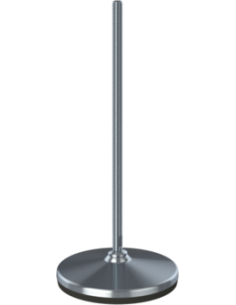

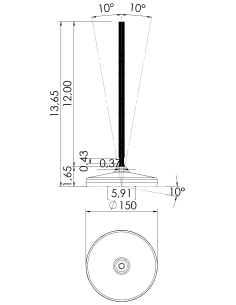

New HX Machine foot HX150-UNC 1/2 x 12, AISI 304, Black NBR 1003881 Footplate diameter:150.00|Height total:347.00 mm (13.66")|Material:AISI 304|Max. adjustment:335.00 mm (13.19")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,198.00 g (2.64 lbs)|Nom. load:2,800.00 N (629.47 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

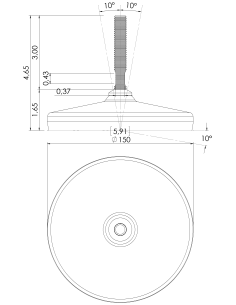

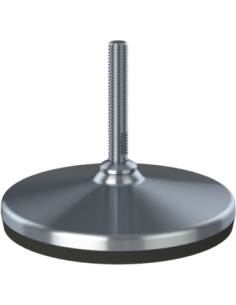

New HX Machine foot HX150-UNC 1/2 x 3, AISI 304, Black NBR 1003886 Footplate diameter:150.00|Height total:118.00 mm (4.65")|Material:AISI 304|Max. adjustment:107.00 mm (4.21")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,007.00 g (2.22 lbs)|Nom. load:18,500.00 N (4,158.97 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

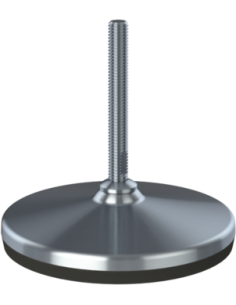

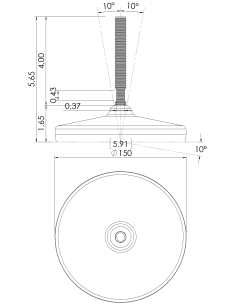

New HX Machine foot HX150-UNC 1/2 x 4, AISI 304, Black NBR 1003887 Footplate diameter:150.00|Height total:144.00 mm (5.67")|Material:AISI 304|Max. adjustment:132.00 mm (5.20")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,028.00 g (2.27 lbs)|Nom. load:18,500.00 N (4,158.97 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

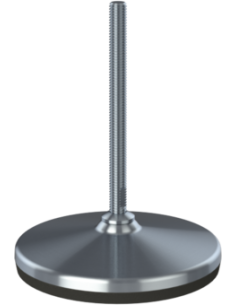

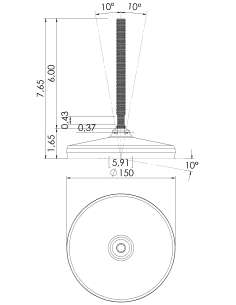

New HX Machine foot HX150-UNC 1/2 x 6, AISI 304, Black NBR 1003889 Footplate diameter:150.00|Height total:194.00 mm (7.64")|Material:AISI 304|Max. adjustment:183.00 mm (7.20")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,070.00 g (2.36 lbs)|Nom. load:11,400.00 N (2,562.82 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

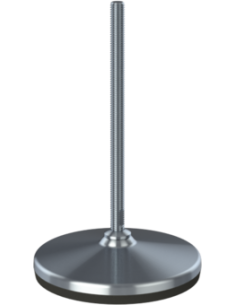

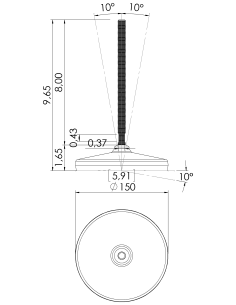

New HX Machine foot HX150-UNC 1/2 x 8, AISI 304, Black NBR 1003891 Footplate diameter:150.00|Height total:245.00 mm (9.65")|Material:AISI 304|Max. adjustment:234.00 mm (9.21")|Min. adjustment:76.00 mm (2.99")|Mounting holes:0|Net weight:1,113.00 g (2.45 lbs)|Nom. load:6,400.00 N (1,438.78 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

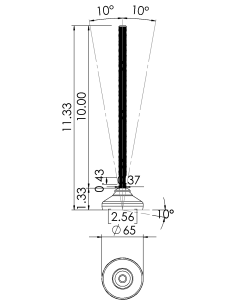

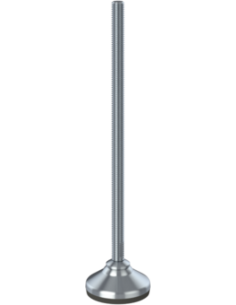

New HX Machine foot HX65-UNC 1/2 x 10, AISI 304, Black NBR 1002276 Footplate diameter:65.00|Height total:288.00 mm (11.34")|Material:AISI 304|Max. adjustment:277.00 mm (10.91")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:358.00 g (0.79 lbs)|Nom. load:4,100.00 N (921.72 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

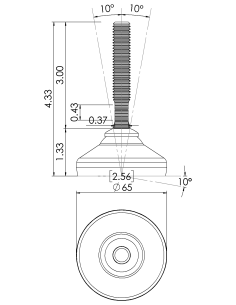

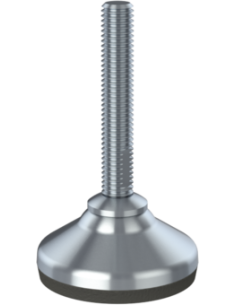

New HX Machine foot HX65-UNC 1/2 x 3, AISI 304, Black NBR 1002282 Footplate diameter:65.00|Height total:110.00 mm (4.33")|Material:AISI 304|Max. adjustment:99.00 mm (3.90")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:214.00 g (0.47 lbs)|Nom. load:9,000.00 N (2,023.28 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

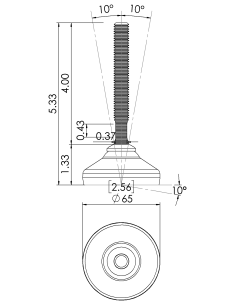

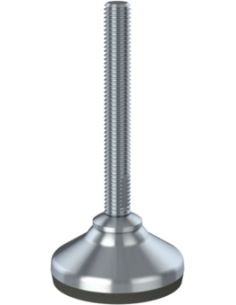

New HX Machine foot HX65-UNC 1/2 x 4, AISI 304, Black NBR 1002283 Footplate diameter:65.00|Height total:136.00 mm (5.35")|Material:AISI 304|Max. adjustment:124.00 mm (4.88")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:235.00 g (0.52 lbs)|Nom. load:9,000.00 N (2,023.28 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

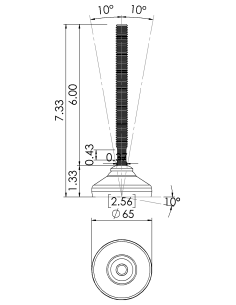

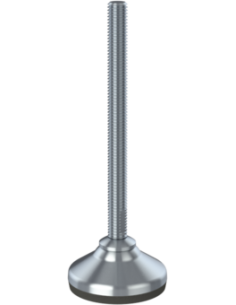

New HX Machine foot HX65-UNC 1/2 x 6, AISI 304, Black NBR 1002285 Footplate diameter:65.00|Height total:186.00 mm (7.32")|Material:AISI 304|Max. adjustment:175.00 mm (6.89")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:276.00 g (0.61 lbs)|Nom. load:9,000.00 N (2,023.28 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

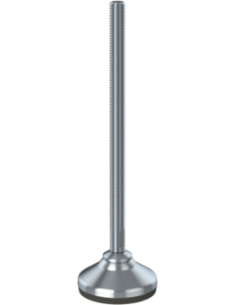

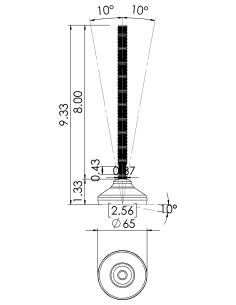

New HX Machine foot HX65-UNC 1/2 x 8, AISI 304, Black NBR 1002287 Footplate diameter:65.00|Height total:237.00 mm (9.33")|Material:AISI 304|Max. adjustment:226.00 mm (8.90")|Min. adjustment:68.00 mm (2.68")|Mounting holes:0|Net weight:317.00 g (0.70 lbs)|Nom. load:6,400.00 N (1,438.78 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

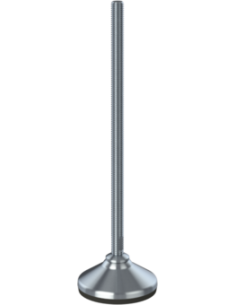

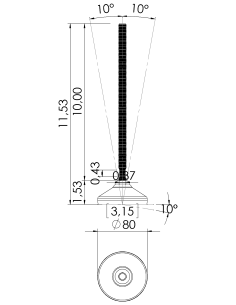

New HX Machine foot HX80-UNC 1/2 x 10, AISI 304, Black NBR 1002350 Footplate diameter:80.00|Height total:293.00 mm (11.54")|Material:AISI 304|Max. adjustment:282.00 mm (11.10")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:448.00 g (0.99 lbs)|Nom. load:4,100.00 N (921.72 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

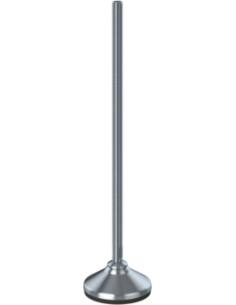

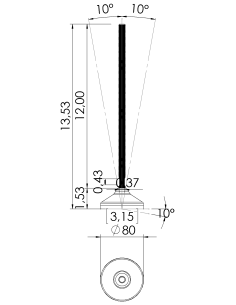

New HX Machine foot HX80-UNC 1/2 x 12, AISI 304, Black NBR 1002351 Footplate diameter:80.00|Height total:344.00 mm (13.54")|Material:AISI 304|Max. adjustment:332.00 mm (13.07")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:490.00 g (1.08 lbs)|Nom. load:2,800.00 N (629.47 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

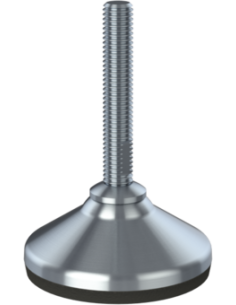

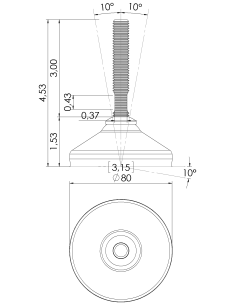

New HX Machine foot HX80-UNC 1/2 x 3, AISI 304, Black NBR 1002356 Footplate diameter:80.00|Height total:115.00 mm (4.53")|Material:AISI 304|Max. adjustment:104.00 mm (4.09")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:299.00 g (0.66 lbs)|Nom. load:15,000.00 N (3,372.13 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

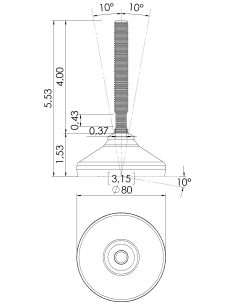

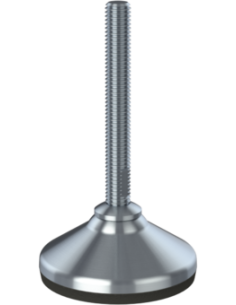

New HX Machine foot HX80-UNC 1/2 x 4, AISI 304, Black NBR 1002357 Footplate diameter:80.00|Height total:141.00 mm (5.55")|Material:AISI 304|Max. adjustment:129.00 mm (5.08")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:320.00 g (0.71 lbs)|Nom. load:15,000.00 N (3,372.13 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

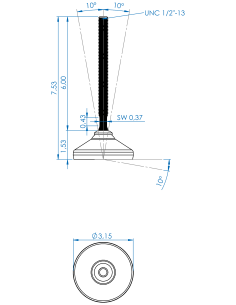

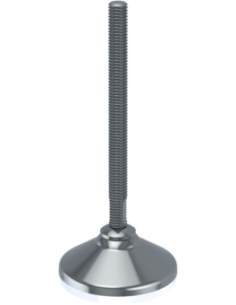

New HX Machine foot HX80-UNC 1/2 x 6, AISI 304, Black NBR 1002359 Footplate diameter:80.00|Height total:191.00 mm (7.52")|Material:AISI 304|Max. adjustment:180.00 mm (7.09")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:359.00 g (0.79 lbs)|Nom. load:11,400.00 N (2,562.82 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

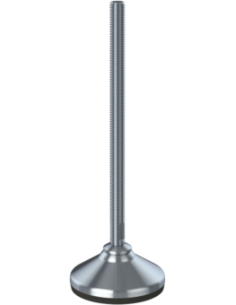

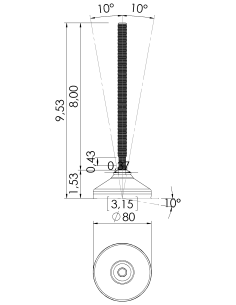

New HX Machine foot HX80-UNC 1/2 x 8, AISI 304, Black NBR 1002361 Footplate diameter:80.00|Height total:242.00 mm (9.53")|Material:AISI 304|Max. adjustment:231.00 mm (9.09")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:405.00 g (0.89 lbs)|Nom. load:6,400.00 N (1,438.78 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

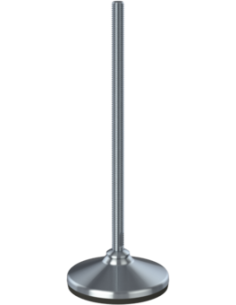

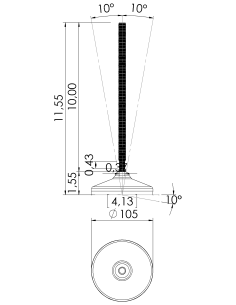

New HX Machine foot HX105-UNC 1/2 x 10, AISI 304, Black NBR 1003734 Footplate diameter:105.00|Height total:293.00 mm (11.54")|Material:AISI 304|Max. adjustment:282.00 mm (11.10")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:624.00 g (1.38 lbs)|Nom. load:4,100.00 N (921.72 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

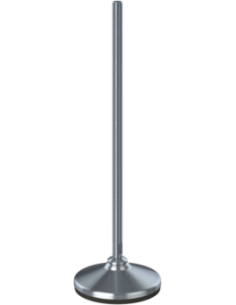

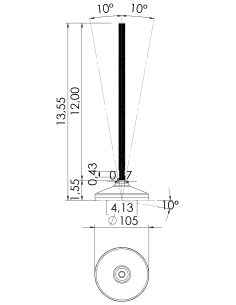

New HX Machine foot HX105-UNC 1/2 x 12, AISI 304, Black NBR 1003735 Footplate diameter:105.00|Height total:344.00 mm (13.54")|Material:AISI 304|Max. adjustment:333.00 mm (13.11")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:667.00 g (1.47 lbs)|Nom. load:2,800.00 N (629.47 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View

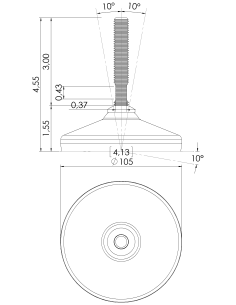

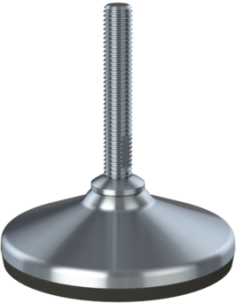

New HX Machine foot HX105-UNC 1/2 x 3, AISI 304, Black NBR 1003740 Footplate diameter:105.00|Height total:116.00 mm (4.57")|Material:AISI 304|Max. adjustment:104.00 mm (4.09")|Min. adjustment:74.00 mm (2.91")|Mounting holes:0|Net weight:475.00 g (1.05 lbs)|Nom. load:18,500.00 N (4,158.97 lbs)|Nom. pull:4,000.00 N (899.24 lbs)|Rubber Type:Black NBR|Thread size:UNC 1/2|Thread standard:UNC View
