SOLIDFULLYTHREADED

Showing 1-5 of 5 item(s)

Machine foot KCF-AS110-M24 x 310, AISI 304, Black NBR, 1 fixation

Machine foot KCF-AS110-M24 x 310, AISI 304, Black NBR, 1 fixation 2

New

SOLIDFULLYTHREADED

Machine foot KCF-AS110-M24 x 310, AISI 304, Black NBR, 1 fixation

Footplate diameter:110.00|Height total:335.00 mm (13.19")|Material:AISI 304|Max. adjustment:316.00 mm (12.44")|Min. adjustment:61.00 mm (2.40")|Mounting holes:1.00|Net weight:2,009.00 g (4.43 lbs)|Nom. load:30,000.00 N (6,744.27 lbs)|Nom. pull:12,000.00 N (2,697.71 lbs)|Rubber Type:Black NBR|Thread size:M24|Thread standard:Metric C

View

Machine foot HG70-M42 x 180, AISI 304

Machine foot HG70-M42 x 180, AISI 304 2

New

SOLIDFULLYTHREADED

Machine foot HG70-M42 x 180, AISI 304

Footplate diameter:70.00|Height total:193.00 mm (7.60")|Material:AISI 304|Max. adjustment:159.00 mm (6.26")|Min. adjustment:81.00 mm (3.19")|Mounting holes:0|Net weight:2,009.00 g (4.43 lbs)|Nom. load:80,000.00 N (17,984.72 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Thread size:M42|Thread standard:Metric C

View

Machine foot HG-AS110-M30 x 230, AISI 304, Black NBR

Machine foot HG-AS110-M30 x 230, AISI 304, Black NBR 2

New

SOLIDFULLYTHREADED

Machine foot HG-AS110-M30 x 230, AISI 304, Black NBR

Footplate diameter:110.00|Height total:247.00 mm (9.72")|Material:AISI 304|Max. adjustment:223.00 mm (8.78")|Min. adjustment:73.00 mm (2.87")|Mounting holes:0|Net weight:2,009.00 g (4.43 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:12,250.00 N (2,753.91 lbs)|Rubber Type:Black NBR|Thread size:M30|Thread standard:Metric C

View

Machine foot J110-M36 x 180, AISI 304, 2 fixations

Machine foot J110-M36 x 180, AISI 304, 2 fixations 2

New

SOLIDFULLYTHREADED

Machine foot J110-M36 x 180, AISI 304, 2 fixations

Footplate diameter:110.00|Height total:196.00 mm (7.72")|Material:AISI 304|Max. adjustment:167.00 mm (6.57")|Min. adjustment:59.00 mm (2.32")|Mounting holes:2.00|Net weight:2,009.00 g (4.43 lbs)|Nom. load:70,000.00 N (15,736.63 lbs)|Nom. pull:12,000.00 N (2,697.71 lbs)|Thread size:M36|Thread standard:Metric C

View

Machine foot HXJ150-UNC 7/8 x 8, AISI 304, Solid, 2 fixations

Machine foot HXJ150-UNC 7/8 x 8, AISI 304, Solid, 2 fixations 2

New

SOLIDFULLYTHREADED

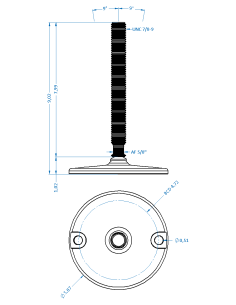

Machine foot HXJ150-UNC 7/8 x 8, AISI 304, Solid, 2 fixations

Footplate diameter:150.00|Height total:229.00 mm (9.02")|Material:AISI 304|Max. adjustment:206.00 mm (8.11")|Min. adjustment:43.00 mm (1.69")|Mounting holes:2.00|Net weight:2,009.00 g (4.43 lbs)|Nom. load:59,100.00 N (13,286.21 lbs)|Nom. pull:20,000.00 N (4,496.18 lbs)|Rubber Type:Solid|Thread size:UNC 7/8|Thread standard:UNC

View
