DERTEC / FR

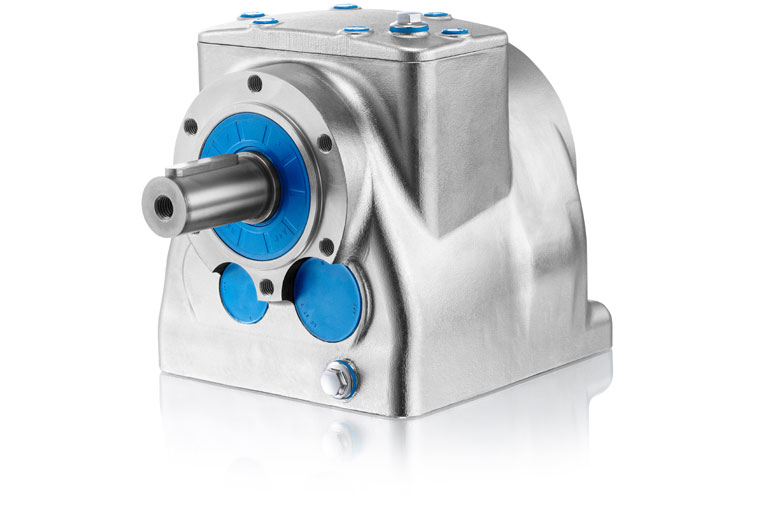

Stainless steel helical gearbox.
A stainless steel helical gearbox available with two or three stages. Compare the required output speed with the installation envelope.
FR / STAINLESS STEEL DRIVES
MOTOR POWER
0.12–7.5 kW
Published series range
MAX. TORQUE
600 Nm
Series maximum
RATIO
3.41:1–199.81:1
Available range depends on size
HOUSING
AISI 316
Stainless steel
CONSTRUCTION & CONFIGURATION
Designed around cleanability.
Electropolished stainless steel housing, rounded surfaces and synthetic H1 food-grade oil are described in the manufacturer’s series information.
Motor connection
Two- and three-stage configurations provide different reduction options. Check the exact mounting dimensions in the series documentation.
Surface finish
Electropolished as standard; mirror polishing is available on request. Confirm the finish for your application.
Accessories & mounting
Output flange options; confirm the required interface and selected motor arrangement. Availability depends on the selected model.
Application review
Provide load, speed, duty cycle and mounting orientation. Verify thermal capacity and shaft loads as part of the selection.
TECHNICAL LIBRARY
Check the detail before you order.
Use the manufacturer’s tables and drawings to verify the exact unit. Series limits are not simultaneous ratings for every configuration.
Confirm the current specification and document revision for your selected gearbox.
EXPLORE MORE SERIES
Compare other drive arrangements.
FH / Hypoid bevel gearbox
Review the series and discuss which arrangement suits your machine.
E-DIMITRIOU / INDUSTRIAL EQUIPMENT
Let’s specify the right drive.
Tell us about your application to discuss selection, availability and a quotation.
Include in your enquiry
Series: FR. Required output speed and torque; motor power; duty cycle; mounting position; shaft dimensions; cleaning conditions and quantity.
Replacing an existing unit? Include its complete reference, nameplate photograph and installation dimensions.
