DERTEC / DHLASS SIGNATURE LINE
Hygienic bearings. Designed around your process.
Stainless steel bearing units for food and beverage equipment. Explore housing styles, insert options and sealed configurations.
STAINLESS STEEL / HYGIENIC DESIGN

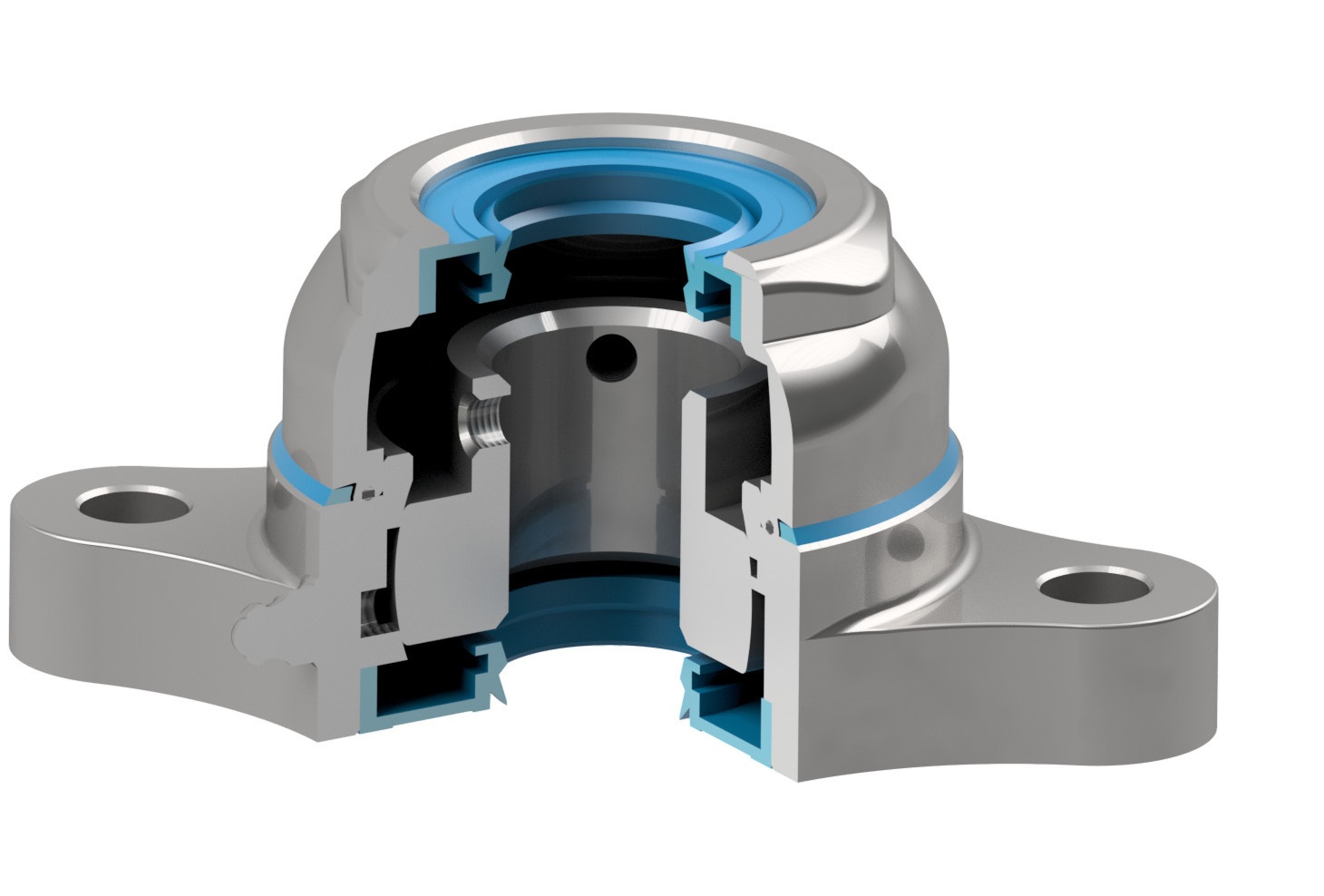

Original manufacturer cutaway illustration.
HOUSING
SS316
Stainless steel housing material.
INSERT
SA / SB
Eccentric ring or grub screw.
COVER
CC / CO
Closed or open end-cover version.
CATALOGUE SIZES
20–50 mm
Shaft diameters listed in the flange tables.
CHOOSE YOUR HOUSING
Three flange formats.
Start with the mounting arrangement, then check the exact model and installation dimensions.

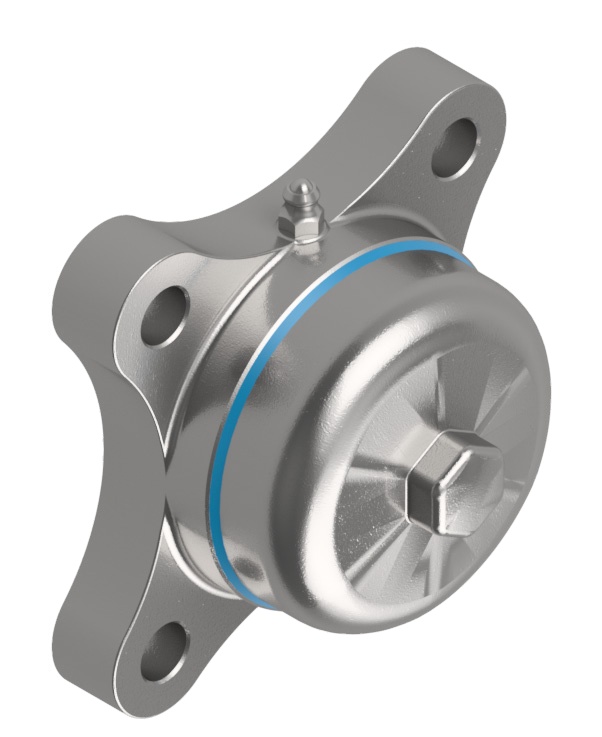

DHLASS / F
4-hole flange
Compare SA and SB inserts, open and closed versions, and the dimensions for your shaft size.

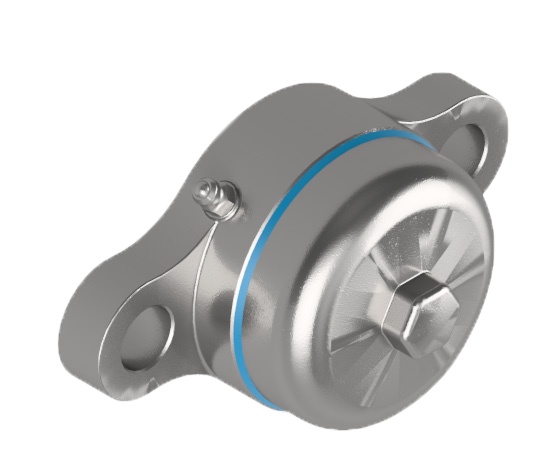

DHLASS / FL
2-hole flange
Compare SA and SB inserts, open and closed versions, and the dimensions for your shaft size.

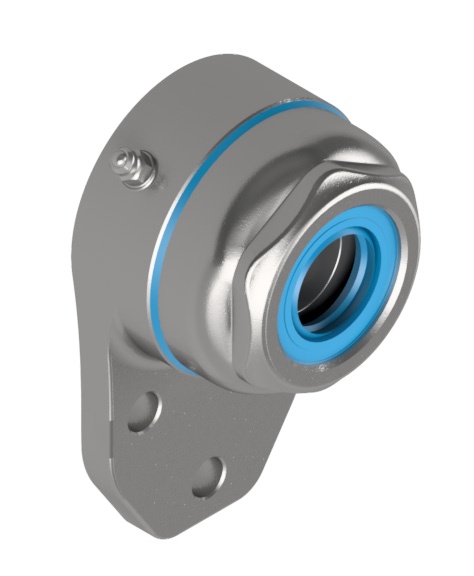

DHLASS / FB
3-hole flange
Compare SA and SB inserts, open and closed versions, and the dimensions for your shaft size.
CONFIGURE YOUR BEARING
The details behind the fit.
SA / Eccentric ring
The catalogue identifies the SA stainless steel insert with an eccentric locking ring.
SB / Grub screw
The SB stainless steel insert uses a grub screw arrangement. Check shaft fit and installation requirements.
CC / Closed cover
Closed end-cover configuration. Select the version that suits the shaft arrangement.
CO / Open cover
Open end-cover configuration with shaft sealing. Confirm the complete assembly before ordering.
The flange tables list SS316 housings and AISI 440 bearing material. Housing material and bearing material are different specifications.
SEALING & CLEANABILITY
Built around the washdown environment.
Rounded housing surfaces and angled faces are designed to support drainage and cleaning. The catalogue describes O-ring sealing, blue cover seals and back seals.
Stand-off installation
Optional hygienic spacers provide separation from the mounting surface. Use the compatibility table for the selected housing.
Alignment matters
The manufacturer instructs that misalignment must be limited to ±1 degree when mounting the fully sealed bearing units.
TECHNICAL LIBRARY
Keep the original data close.
Open the manufacturer’s drawings and tables to check the exact bearing reference.
Dimensions & versions
F: pages 4–5. FL: pages 6–7. FB: pages 8–9. SA and SB inserts have separate tables.
Load information
Review load direction and the exact housing and bearing size. Confirm the application with the supplier.
Hygienic spacers
Check spacer compatibility, dimensions and required quantities.
Installation guide
Review frame-mounted and stand-off configurations and fastening dimensions.
15-page supplied PDF. Page links may depend on your viewer. Numerical tables remain in the original catalogue; confirm the current specification for your selected unit.
E-DIMITRIOU / INDUSTRIAL EQUIPMENT
Find the right bearing assembly.
Send your requirements to discuss selection, availability and a quotation.
Include in your enquiry
Shaft diameter; F, FL or FB housing; SA or SB insert; open or closed cover; loads and speed; cleaning conditions; spacer requirements and quantity.
For replacement parts, include the full reference and a photograph of the existing installation.
+30 24310 22496
