DERTEC / FKA

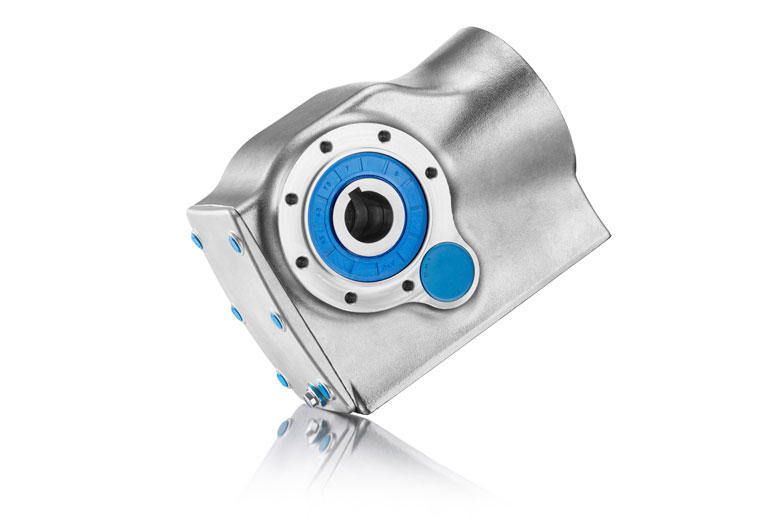

Stainless steel bevel gearbox.
A stainless steel bevel gearbox for installations requiring a right-angle drive. Compare integrated and standard IEC motor arrangements.
FKA / STAINLESS STEEL DRIVES
MOTOR POWER
0.12–7.5 kW
Published series range
MAX. TORQUE
2700 Nm
Series maximum
RATIO
3.98:1–197.37:1
Available range depends on size
HOUSING
AISI 316
Stainless steel
CONSTRUCTION & CONFIGURATION
Designed around cleanability.
Electropolished stainless steel housing, rounded surfaces and synthetic H1 food-grade oil are described in the manufacturer’s series information.
Motor connection
FKA is prepared for the special B5T motor. FKA-AM accepts a standard IEC motor.
Surface finish
Electropolished as standard; mirror polishing is available on request. Confirm the finish for your application.
Accessories & mounting
Torque arms, open or closed caps, output flanges, solid shafts and shrink discs. Availability depends on the selected model.
Application review
Provide load, speed, duty cycle and mounting orientation. Verify thermal capacity and shaft loads as part of the selection.
TECHNICAL LIBRARY
Check the detail before you order.
Use the manufacturer’s tables and drawings to verify the exact unit. Series limits are not simultaneous ratings for every configuration.
Confirm the current specification and document revision for your selected gearbox.
EXPLORE MORE SERIES
Compare other drive arrangements.
FH / Hypoid bevel gearbox
Review the series and discuss which arrangement suits your machine.
E-DIMITRIOU / INDUSTRIAL EQUIPMENT
Let’s specify the right drive.
Tell us about your application to discuss selection, availability and a quotation.
Include in your enquiry
Series: FKA. Required output speed and torque; motor power; duty cycle; mounting position; shaft dimensions; cleaning conditions and quantity.
Replacing an existing unit? Include its complete reference, nameplate photograph and installation dimensions.
